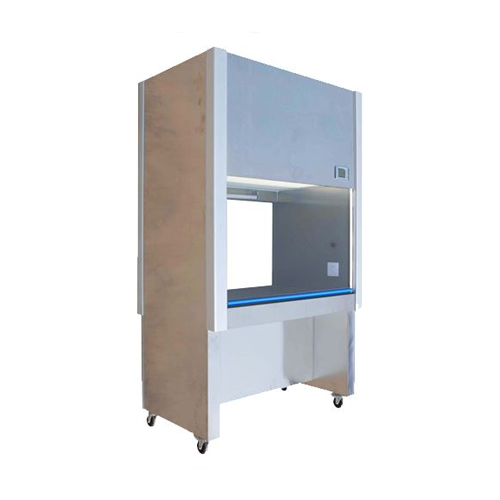

      Biosafety Cabinet Class II A2 56-BSC100

      Biosafety Cabinet Class II A2 56-BSC100

      Biosafety Cabinet is a Class II type A2 safety level 2 enclosed cabinet unit with 70% of the HEPA filtered air recirculated through the cabinet and 30% discharged through an exhaust HEPA filter to the environment. It is used to handle minute quantities of volatile toxic chemicals and trace amounts of radio nucleotides where chemical vapor re-circulation into the work zone is permitted. It meets the requirements for the protection of product, personnel and the environment allowing for the safe handling of pathogens, contaminants or other potentially hazardous materials.

      • ★ ★ ★ ★ ★
      Get Quote
      Air circulation 70%
      Air exhaust 30%
      Glass door orientation Vertical
      Working area 1000 x 675 x 620 mm
      Overall dimension 1195 x 735 x 1950 mm
      HEPA filter 0.3 micron
      Air pressure Vertical negative
      Cleaning level 100 level
      Ascending wind speed ≥ 0.55 m/s
      Descending wind speed ≥ 0.35 m/s
      Noise ≤ 62 dB
      Half ventilation peak value ≤ 5 µm
      Personnel protection CFU ≤ 10
      Product protection CFU ≤ 5
      Cross contamination CFU ≤ 2
      Fluorescent lamp 16 W x 2
      UV lamp 15 W x 2
      Power AC 220 V / 50 Hz
      Air supply filter dimension 995 x 640 x 38 mm
      Weight 250 kg
      • 70 % air recirculation , 30 % air exhaust
        Vertical glass door / 10° tilted glass door
        Superior filtration : 0.3 micron HEPA filter
        Vertical negative pressure
        Air insulation to avoid cross pollution
        Microprocessor controller LCD digital display
        Energy efficient
        Stainless steel working space construction

      Laminar Airflow

      Vertical Laminar Air Flow Cabinet 56-VAC100

      Vertical Laminar Air Flow Cabinet 56-VAC100

      • Dimension of working area ( W x D x H ) : 485 x 475 x 455 mm
      • Dimension of filter ( W x D x H ) : 480 x 460 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC101

      Vertical Laminar Air Flow Cabinet 56-VAC101

      • Dimension of working area ( W x D x H ) : 685 x 475 x 455 mm
      • Dimension of filter ( W x D x H ) : 680 x 460 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC200

      Vertical Laminar Air Flow Cabinet 56-VAC200

      • Dimension of working area ( W x D x H ) : 700 x 615 x 580 mm
      • Dimension of filter ( W x D x H ) : 695 x 600 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC201

      Vertical Laminar Air Flow Cabinet 56-VAC201

      • Dimension of working area ( W x D x H ) : 1140 x 615 x 580 mm
      • Dimension of filter ( W x D x H ) : 1135 x 600 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC300

      Vertical Laminar Air Flow Cabinet 56-VAC300

      • Dimension of working area ( W x D x H ) : 700 x 490 x 515 mm
      • Dimension of filter ( W x D x H ) : 695 x 460 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC301

      Vertical Laminar Air Flow Cabinet 56-VAC301

      • Dimension of working area ( W x D x H ) : 1140 x 485 x 515 mm
      • Dimension of filter ( W x D x H ) : 1135 x 460 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC400

      Vertical Laminar Air Flow Cabinet 56-VAC400

      • Dimension of working area ( W x D x H ) : 870 x 510 x 600 mm
      • Dimension of filter ( W x D x H ) : 865 x 600 x 38 mm
      ★ ★ ★ ★ ★
      Vertical Laminar Air Flow Cabinet 56-VAC401

      Vertical Laminar Air Flow Cabinet 56-VAC401

      • Dimension of working area ( W x D x H ) : 1320 x 510 x 600 mm
      • Dimension of filter ( W x D x H ) : 1320 x 600 x 38 mm
      ★ ★ ★ ★ ★

      PCR Cabinets

      PCR Cabinet 56-PCC100

      PCR Cabinet 56-PCC100

      • Internal dimension ( W x D x H ) : 900 x 595 x 560 mm
      • External dimension ( W x D x H ) : 1000 x 705 x 1770 mm
      ★ ★ ★ ★ ★
      PCR Cabinet 56-PCC101

      PCR Cabinet 56-PCC101

      • Internal dimension ( W x D x H ) : 700 x 595 x 550 mm
      • External dimension ( W x D x H ) : 800 x 700 x 1770 mm
      ★ ★ ★ ★ ★
      PCR Cabinet 56-PCC102

      PCR Cabinet 56-PCC102

      • Internal dimension ( W x D x H ) : 1100 x 595 x 550 mm
      • External dimension ( W x D x H ) : 1200 x 700 x 1770 mm
      ★ ★ ★ ★ ★
      PCR Cabinet 56-PCC103

      PCR Cabinet 56-PCC103

      • Internal dimension ( W x D x H ) : 1200 x 595 x 550 mm
      • External dimension ( W x D x H ) : 1300 x 700 x 1770 mm
      ★ ★ ★ ★ ★
      PCR Cabinet 56-PCC104

      PCR Cabinet 56-PCC104

      • Internal dimension ( W x D x H ) : 1400 x 595 x 550 mm
      • External dimension ( W x D x H ) : 1500 x 700 x 1770 mm
      ★ ★ ★ ★ ★
