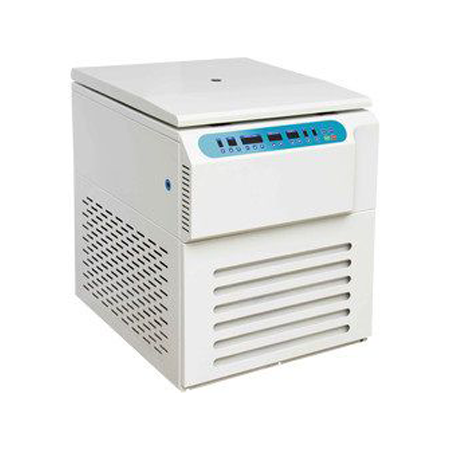

Refrigerated Centrifuge 02A-RRC301

Refrigerated Centrifuge 02A-RRC301

Refrigerated Centrifuge is a microprocessor controlled floor standing refrigerated centrifuge having 5000 rpm speed. It is safe, reliable, low maintenance and easy-to-use instrument equipped with LCD display and low noise flexible axle driven rotor system. With auto electric locking system fluorine free compressors and 3 tier protective steel covering, it is ideal for blood separation, protein precipitation etc. and can be used at blood station and pharmaceutical industry for variety of applications.

Max. Speed 21000 rpm
Max. RCF 46140 x g
Max. Capacity 4 x 800 ml
Temp. Range (-20) ℃ to 40 ℃
Temp. Accuracy ± 1 ℃
Speed Accuracy ± 50 rpm
Timer Range 1 - 99 hr. 59 min
Noise ≦ 65 dB
Rotor Identification Automatic
Power Supply AC 110 - 220 V / 50 - 60 Hz / 35 A
Dimension (H x W x D) 865 x 728 x 1240 mm
Packaged Dimension (H x W x D) 1000 x 850 x 1510 mm
Net Weight 235 kg
Gross Weight 285 kg
  • Microprocessor controlled system
    Flexible axle driven rotor system that ensures smooth functioning
    3 tier protection steel covering to ensure safety
    10 inches LCD display that indicates all running parameters
    Automatic electric locking system that ensures protection against over speed, over temperature and imbalance
    Provision to change running parameters
    30 different programs can be stored in the memory
    10 different acceleration and deceleration speed available
    Rotor is connected to spindle by specialized taper sleeve
    Wide range of rotors that are compatible with the instrument are available
    Adapters can be designed as per the experimental requirement
    Safe, reliable and efficient
    Pollution free
  • It is widely used in life sciences, healthcare and pharmaceutical industries for RNA extraction, protein precipitation and sample processing.

High Speed Centrifuge

Low Speed Centrifuge

Mini Centrifuge

Mini Centrifuge 02A-MNC100

  • Max. speed : 7000 rpm
  • Max. Capacity : 6 x 0.2 ml / 6 x 0.5 ml / 6 x 1.5 ml / 6 x 2 ml / 8 x 2 x 0.5 ml

Mini Centrifuge 02A-MNC101

  • Max. speed : 12000 rpm
  • Max. Capacity : 6 x 0.2 ml, 6 x 0.5 ml, 6 x 1.5 ml, 6 x 2 ml, 8 x 2 x 0.5 ml

Vacuum Centrifuge

Vacuum Concentrator Centrifuge 02A-VCC100

  • Rotor capacity : 1.5 ml × 62
  • Speed : 1350 rpm

Vacuum Concentrator Centrifuge 02A-VCC101

  • Rotor capacity : 10 ml × 12, 50 ml × 6
  • Speed : 1500 rpm

Vacuum Concentrator Centrifuge 02A-VCC102

  • Rotor capacity : 250 ml × 6, 50 ml × 6 × 2, 20 ml × 6 × 5
  • Speed : 2000 rpm
