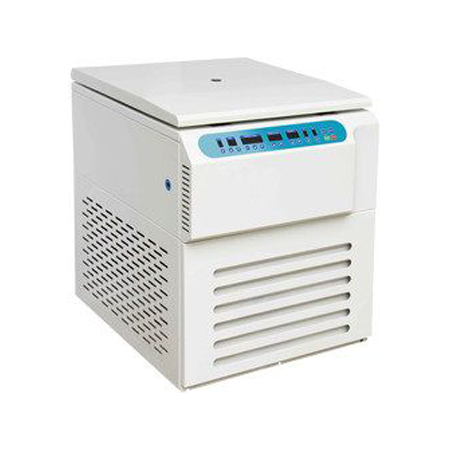

Refrigerated Centrifuge 02A-RRC105

Refrigerated Centrifuge 02A-RRC105

Refrigerated Centrifuge is a microprocessor controlled floor standing refrigerated centrifuge having 5000 rpm speed. It is safe, reliable, low maintenance and easy-to-use instrument equipped with LCD display and low noise flexible axle driven rotor system. With auto electric locking system fluorine free compressors and 3 tier protective steel covering, it is ideal for blood separation, protein precipitation etc. and can be used at blood station and pharmaceutical industry for variety of applications.

Max. Speed 7000 rpm
Max. RCF 11900 x g
Max. Capacity 6 x 2400 ml
Temp. Range (-20) ℃ to 40 ℃
Temp. Accuracy ± 1 ℃
Speed Accuracy ± 50 rpm
Timer Range 1 - 99 hr. 59 min
Noise ≦ 65 dB
Rotor Identification Automatic
Power Supply AC 110 - 220 V / 50 - 60 Hz / 35 A
Memory 10 programs can be stored
Dimension (H x W x D) 950 x 870 x 1300 mm
Packaged Dimension (H x W x D) 1150 x 1050 x 1405 mm
Net Weight 380 kg
Gross Weight 420 kg
  • Microprocessor controlled system
    Flexible axle driven rotor system which ensures smooth functioning
    10 inches LCD display that indicates time, temperature, speed and RCF in operation
    Fluorine free compressor with double cycle cooling and heating effect
    Automatic electric lid lock system that provides protection against over speed, over temperature and imbalance
    3 tier protective steel covering to ensure safety
    10 kinds of acceleration and deceleration speeds available
    Precise in temperature control
    Quick in function
    Noise less
    Environment friendly
  • Refrigerated centrifuge LRF-A30 is widely used in medical laboratories, hospitals, blood banks, pharmaceuticals, educational and research institutes for precipitate separation, serum analysis etc.

High Speed Centrifuge

Low Speed Centrifuge

Mini Centrifuge

Mini Centrifuge 02A-MNC100

  • Max. speed : 7000 rpm
  • Max. Capacity : 6 x 0.2 ml / 6 x 0.5 ml / 6 x 1.5 ml / 6 x 2 ml / 8 x 2 x 0.5 ml

Mini Centrifuge 02A-MNC101

  • Max. speed : 12000 rpm
  • Max. Capacity : 6 x 0.2 ml, 6 x 0.5 ml, 6 x 1.5 ml, 6 x 2 ml, 8 x 2 x 0.5 ml

Vacuum Centrifuge

Vacuum Concentrator Centrifuge 02A-VCC100

  • Rotor capacity : 1.5 ml × 62
  • Speed : 1350 rpm

Vacuum Concentrator Centrifuge 02A-VCC101

  • Rotor capacity : 10 ml × 12, 50 ml × 6
  • Speed : 1500 rpm

Vacuum Concentrator Centrifuge 02A-VCC102

  • Rotor capacity : 250 ml × 6, 50 ml × 6 × 2, 20 ml × 6 × 5
  • Speed : 2000 rpm
