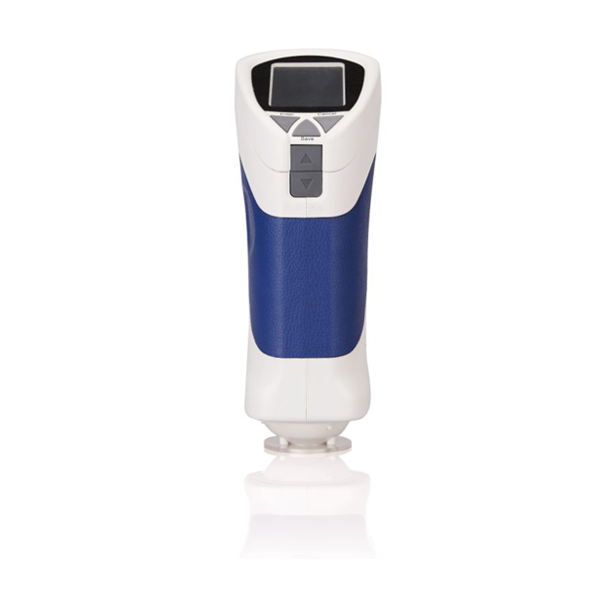

Colorimeter 33-CMT102

Name: Colorimeter 33-CMT102
Brand: Labsearch
SKU: 33-CMT102
Rating: 5.0 (386 reviews)

colorimeter comes with build-in micron camera for viewing the measuring area. It becomes convenient for operator to see & analyze the test measurement area. It is suitable for testing patterned and colorful samples. Measurement can be done at multiple spots for average readings. The colorimeter gives ultra stable performance throughout the operations.

★ ★ ★ ★ ★

Get Quote

Characteristic function	Camera viewing system for measurement
Illumination system	8°/d (diffusion illumination), SCI (spectral components included)
Display mode	Colorimetric values: L × a × b，L × C × h，△E × ab，XYZ，relative RGB values Color difference values: △(L × a × b)，△(L × C × h) Whiteness values: hunter whiteness, Ganz whiteness Yellowness value: YI
Display screen	2.4 inch LCD display screen
Measuring calibration	About 8 mm
Measuring condition	CIE 10° standard observation / CIE D65 light source
Measuring range	L × 1 - 100
Storage	100 sets of standard samples and 100 data groups for each sample
Measuring aperture	8 mm
Repeatability	Standard deviation within △E × ab × < 0.08 (Measuring condition: measuring white calibration board 80 times)
Measurement time	0.5 s
Light source	LED halogen lamp
Power supply	Four 1.5V AA sized alkaline battery or nickel metal hydride batteries / DC 5 V
Interface	USB 2.0, printer
Weight	550 g
Dimension (volume)	77 × 86 × 210 mm

Equipped with camera viewing system
Can manually set up L × a × b × value for standard samples
2.4 inch LCD display screen
8 °/ d (diffusion illumination system) with spectral components included (SCI)
Display precision 0.01
PC software & data control
USB for data transmission
Large storage data
Provides accurate time measurement setting

The colorimeter has applications in decoration, plastic, food, dyeing, printing, textile, chemical & other industries.
