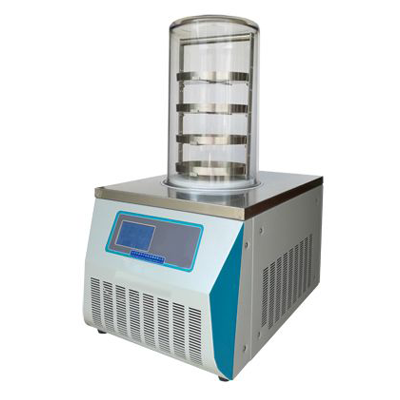

Benchtop Standard Freeze Dryer 19A-BSF100

Name: Benchtop Standard Freeze Dryer 19A-BSF100
Brand: Labsearch
SKU: 19A-BSF100
Rating: 5.0 (363 reviews)

Standard Freeze Dryer is a compact table-top unit with 3 kg condenser capacity and condenser temperature of - 50 °C used for drying aqueous specimens. Equipped with four to six shelves allowing any shape or size of sample to be freeze dried. Precise vacuum control enables faster freeze drying and reproducible results. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.

★ ★ ★ ★ ★

Get Quote

Condenser temperature	- 50 °C
Condenser capacity	3 kg / 24 h
Freeze drying area	0.12 m²
Bulk capacity	1.2 L
Display	LCD touch screen
Shelves	4 - 6 shelves
Shelves dimension	Φ 200 mm
Final Vacuum	< 10 Pa
Voltage	220 V / 50 Hz
Dimensions	565 x 420 x ( 360 + 430 ) mm
Weight	75 kg

Ice condenser capacity is 3 kg / 24 h
Condenser temperature ( - 50 °C )
Vacuum pump oil return
Oil mist filtration system
Clear acrylic door for easy product viewing during processing
Easy to clean and anti-corrosion cold trap and operating table
Display of sample temperature , vacuum curve degree , cold trap temperature curve
