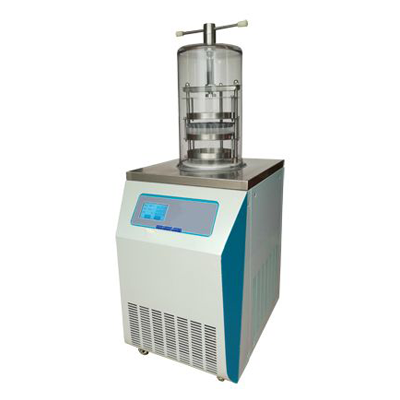

Floor Top Press Freeze Dryer 19A-FSF301

Name: Floor Top Press Freeze Dryer 19A-FSF301
Brand: Labsearch
SKU: 19A-FSF301
Rating: 5.0 (233 reviews)

Top Press Freeze Dryer is a floor standing unit with 3 kg condenser capacity and condenser temperature of -80 °C for specimen’s containing solvents. It provides feasibility of vial lyophilization. Precise vacuum control enables faster freeze drying and reproducible results. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.

★ ★ ★ ★ ★

Get Quote

Condenser temperature	- 80 °C
Condenser capacity	3 kg / 24 h
Freeze drying area	0.12 m²
Bulk capacity	1.2 L
Vial capacity Φ 12 mm	1220 pieces
Vial capacity Φ 16 mm	680 pieces
Vial capacity Φ 22 mm	348 pieces
Display	LCD touch screen
Shelves	4 shelves
Shelves dimension	Φ 240 mm
Final Vacuum	< 10 Pa
Voltage	220 V / 50 Hz
Dimensions	6600 x 460 x ( 710 + 430 ) mm
Weight	130 kg

Ice condenser capacity is 3 kg / 24 h
Condenser temperature ( - 80 °C )
Vacuum pump oil return
Oil mist filtration system
Facilitates connection of different sizes of flasks ranging from 100 ml to 1000 ml
Clear acrylic door for easy product viewing during processing
Easy to clean and anti-corrosion cold trap and operating table
Display of sample temperature , vacuum curve degree , cold trap temperature curve
