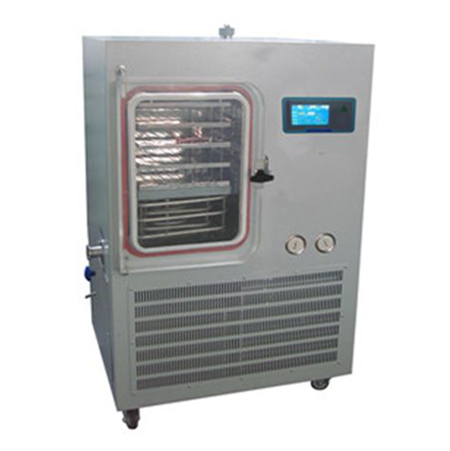

Pilot Scale Standard Freeze Dryer 19A-PSF300

Name: Pilot Scale Standard Freeze Dryer 19A-PSF300
Brand: Labsearch
SKU: 19A-PSF300
Rating: 4.9 (374 reviews)

Standard Freeze Dryer is designed to handle lyophilization needs for scale up production. Equipped with 10 kg condenser capacity and a temperature of -80 °C for effective lyophilization. It's ideal for freeze drying samples with low eutectic temperatures. The temperature controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.

★ ★ ★ ★ ★

Get Quote

Condenser temperature	- 70 °C
Condenser capacity	10 kg / 24 h
Freeze drying area	0.7 m²
Bulk capacity	6 L
Vial capacity Φ 12 mm	4920 pieces
Vial capacity Φ 16 mm	2728 pieces
Vial capacity Φ 22 mm	1408 pieces
Display	LCD touch screen
Shelves	5 shelves
Shelves dimension	Φ 50 mm
Shelf temperature	-50 °C to 70 °C
Final Vacuum	< 10 Pa
Voltage	220 V / 50 Hz
Power	1700 W
Dimensions	960 x 785 x 1450 mm
Weight	380 kg

Ice condenser capacity is 10 kg / 24 h
Condenser temperature (- 80 °C )
Vacuum pump oil return
Oil mist filtration system
Automatic batch control production
Clear acrylic door for easy product viewing during processing
Easy to clean and anti-corrosion cold trap and operating table
Display of sample temperature , vacuum curve degree , cold trap temperature curve
Hot gas defrost and smooth-walled condensers for minimal delay between runs
Real time alarm for fault detection
Automatic data and history save
