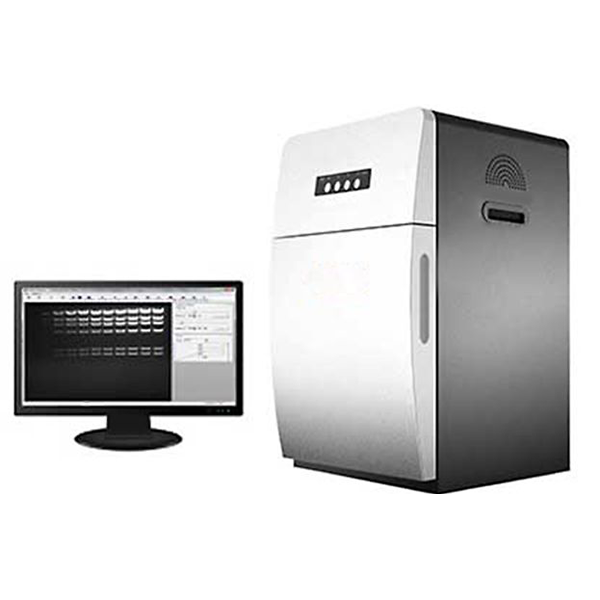

Gel documentation system 36-GDS101

Name: Gel documentation system 36-GDS101
Brand: Labsearch
SKU: 36-GDS101
Rating: 5.0 (311 reviews)

Gel imaging system is provided with low noise, cooled CCD camera. It has anti-UV filter which provides UV protection, helps user to observe and seize the gel bar under UV illumination. This system can detect far weaker signals, offers higher sensitivity and wider linear range. With this gel imaging system, it is possible to capture weak signals under low illumination conditions.

★ ★ ★ ★ ★

Get Quote

QE	0.82
CCD camera	1.45 megapixels, Pixels density 16-bit
A/D	16-bit
Lens	F1.2 (motorized) transparent lens
Trans-white illumination	LED White light transmission plate, Sample area: 23cm x 32cm
Ep white illumination	Dual epi-white LED
UV Transmission	Sample area: 21 cm x 26 cm, Wavelength: 302 nm
Filter	590 nm
Dimension	550 X 460 760 mm
Gross weight	26

High resolution 16-bit CCD camera
Motorized lens with spacious zoom range
Automatic control system by the use of PC
Stable plug and USB port for installation and operations
Intelligent Gel analysis and Gel capturing software for use
Numerical adjustment focal length and aperture

Filters: 460 nm, 530 nm, 630 nm, 670 nm
UV transmission : 254 nm, 365 nm

It has applications in genetic engineering, biotechnology, molecular biology for the obtaining high quality images of DNA/RNA bands using various techniques, in western blotting, ELISA and in protein detection etc.
