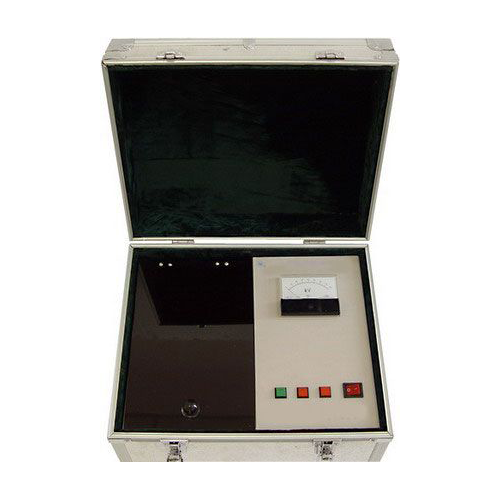

Insulating Oil Breakdown Voltage Tester 52-OTI103

Name: Insulating Oil Breakdown Voltage Tester 52-OTI103
Brand: Labsearch
SKU: 52-OTI103
Rating: 4.9 (406 reviews)

52-OTI103 is manufactured with instinctive display and high voltage range. It is designed and made as per ASTM D1816-04 “Test Methods for Breakdown Voltage of Lubricating Oil. We deliberately designed it to meet high accuracy.

★ ★ ★ ★ ★

Get Quote

Power supply	AC 220 V ± 5 % , 50Hz
Measurement range	0 ~ 75 kV
Voltage rising rate	3 kV ± 10 % / s
Distance between electrodes	2.5 mm
Output power	2 kVA

Mechatronic design with intuitive display
Easy to operate, accurate measurement, excellent repeatability
Low system error
Solid boost transformer the maximum voltage can reach 70kv

It is widely used to determine dielectric constant of lubricating oils in the field of railway, aviation, power plant, petroleum industry, and scientific institutes.
