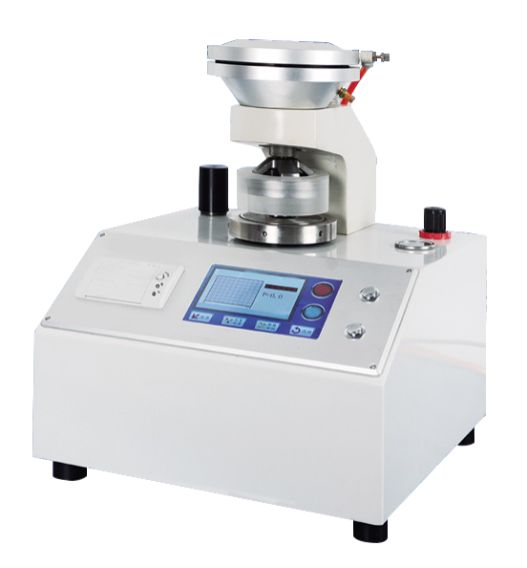

Mullen burst tester/ paper bursting tester 61-PPT125

Name: Mullen burst tester/ paper bursting tester 61-PPT125
Brand: Labsearch
SKU: 61-PPT125
Rating: 5.0 (203 reviews)

Mullen burst tester is used to measure the bursting strength of paper submitted to increasing hydraulic pressure. Used in testing bursting strength of all types of papers in the 0 to 1600 kPa range depending on clamp pressure. It has mechanically & electrically integrated modern design, with compact structure & easy for maintenance. The advantage of user-friendly operations, stable performance makes this tester an essential instrument for papermaking, packing, inspection and research.

★ ★ ★ ★ ★

Get Quote

Measurement range	0 to 1600 kPa
Accuracy	± 0.5 % F.S.
Compression speed	95 ± 5 ml/min
Clamp pressure	≥ 430 kPa
Diameter of upper clamp	30.5 ± 0.05 mm
Diameter of lower clamp	33.1 ± 0.05 mm
Pneumatic pressure	0.3 to 0.5 MPa
Film resistance	For bulge height = 9 mm, The pressure = 25 to 35 kPa
Dimension	480×420×600 mm
Net weight	65 kg
Power supply	AC220 V ± 10 % , 50 Hz

Large colored LCD touch screen display
Bursting strength range 0 to 1600 kPa
Use of hydraulic oil as the driving force to break the specimen
Equipped with high precision sensors
Equipped micro-computer control system
Attachment for micro-printer with high print speed and low failure rate
Specimen is broken , stores the maximum amount automatically

Mullen burst tester is used to measure bursting strength of paperboard, paper across paper industry, packaging industry, printing industry.
