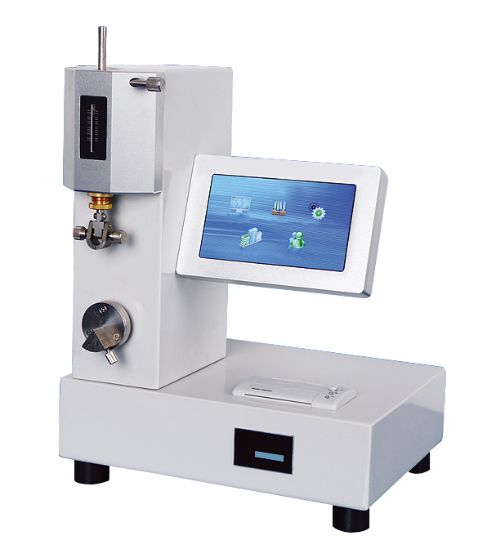

      MIT Folding endurance tester 61-PPT128

      MIT Folding endurance tester 61-PPT128

      Folding endurance tester is used to measure the folding endurance of paper, cardboard and other paper like sheet, material. The folding clamp can be positioned automatically. The microprocessor controlled technology, complete functions, stable performance, easy to use parameters are the advantages of this instrument.

      • ★ ★ ★ ★ ★
      Get Quote
      Measuring scope 0 to 99999 s
      Folding angle 135° ± 2°
      Tensile scope 4.9 to 14.7 N
      Folding head suture size 0.25 mm, 0.50 mm, 0.75 mm, 1.00 mm
      Folding radius 0.38 ± 0.02 mm
      Dimension 320×320×450 mm
      Net weight 35 kg
      Power supply AC220 V ± 10 % , 50 Hz
      • Touch screen display
        Automatic measurements, statistic values
        Automatic return to zero once the test gets completed
        Can print the test results
        Data storage function
        Electromechanical integration of modern design
        Easy operations, safe & reliable results
      • Folding endurance tester has applications in paper industry, cardboard, packaging industry.

      Paper Testing Instruments

      Whiteness & chromaticity Tester 61-PPT100

      Whiteness & chromaticity Tester 61-PPT100

      • Sample (size) length : Diameter ≥30 mm, Thickness ≤ 40 mm
      • Measurement mode : Diffuse reflection factor Rx, Ry, Rz, stimulus value Y10, X10, Z10, chromaticity coordinates x10, y10, z10; lightness L *, chroma a * b *, chroma C * ab, hue angle h * ab, dominant wavelength λd, excitement purity Pe, color difference ΔE * ab, lightness difference ΔL *, chroma difference ΔC * ab, hue difference ΔH * ab, Hunter system L , A, b
      ★ ★ ★ ★ ★
      Whiteness Meter 61-PPT101

      Whiteness Meter 61-PPT101

      • Sample (size) length : Diameter ≥30 mm, Thickness ≤ 40 mm
      • System : D/0 lighting geometrical viewing conditions, diffuser diameter (d) 150mm, testing hole diameter 30mm
      ★ ★ ★ ★ ★
      Tensile stifness tester 61-PPT102

      Tensile stifness tester 61-PPT102

      • Sample (size) length : 38×70 mm
      • Measuring range : (1-500) mN.m (divided into 7 small ranges)
      ★ ★ ★ ★ ★
      Automatic Tensile tester Horizontal 61-PPT103

      Automatic Tensile tester Horizontal 61-PPT103

      • Sample (size) length : 90 to 200 mm
      • Sample width : 15 mm, 25 mm, 50mm
      ★ ★ ★ ★ ★
      Tensile horizontal tester 61-PPT104

      Tensile horizontal tester 61-PPT104

      • Sample (size) length : 180 mm (180, 150, 100, 90, 50 mm adjustable)
      • Sample width : 15 mm
      ★ ★ ★ ★ ★
      Vertical tensile tester 61-PPT105

      Vertical tensile tester 61-PPT105

      • Sample (size) length : 0 to 200 mm adjustable
      • Sample width : 15 mm
      ★ ★ ★ ★ ★
      Pulp beating freeness tester 61-PPT106

      Pulp beating freeness tester 61-PPT106

      • Measurement range : 0 to 100° SR
      • Sealed testing speed : 100 ± 10 mm/s
      ★ ★ ★ ★ ★
      Water absorption tester (KLEMN type) 61-PPT107

      Water absorption tester (KLEMN type) 61-PPT107

      • Measurement range : 0 to 200 mm
      • Specimen size : 15×250 mm
      ★ ★ ★ ★ ★
      Cobb Water absorption tester 61-PPT108

      Cobb Water absorption tester 61-PPT108

      • Metal Cylinder inner area : (100 ± 0.2) cm2
      • Metal Cylinder height : 50 mm
      ★ ★ ★ ★ ★
      Cobb sample cutter 61-PPT109

      Cobb sample cutter 61-PPT109

      • Sample diameter : 125 mm
      • Sample error : ± 0.2 mm
      ★ ★ ★ ★ ★
      Coefficient of friction tester 61-PPT110

      Coefficient of friction tester 61-PPT110

      • Measurement range : 0.01 to 10 N
      • Slider weight : 200 g
      ★ ★ ★ ★ ★
      Electronic bending stiffness tester 61-PPT111

      Electronic bending stiffness tester 61-PPT111

      • Testing speed : 200° ± 20° / min
      • Test range : 1 to 10000 mN
      ★ ★ ★ ★ ★
      Paper and cardboard thickness meter 61-PPT112

      Paper and cardboard thickness meter 61-PPT112

      • Measuring range : 0 to 4 mm
      • Accuracy : 0.01 or 0.001 mm
      ★ ★ ★ ★ ★
      Corrugated cardboard thickness meter 61-PPT113

      Corrugated cardboard thickness meter 61-PPT113

      • Measuring range : 0 to 20 mm
      • Accuracy : 0.01 mm
      ★ ★ ★ ★ ★
      Ink rubber tester 61-PPT114

      Ink rubber tester 61-PPT114

      • Sample size (L*B) : 230×50 mm (can join short samples together)
      • Rub pressure : 20 ± 0.2 N
      ★ ★ ★ ★ ★
      Standard strip cutter 61-PPT115

      Standard strip cutter 61-PPT115

      • Sample width : 15 mm
      • Sample maximum length : 300 mm
      ★ ★ ★ ★ ★
      Softness tester 61-PPT116

      Softness tester 61-PPT116

      • Measuring range : 10 to 1000 mN
      • Division value : 1 mN
      ★ ★ ★ ★ ★
      Compression tester 61-PPT117

      Compression tester 61-PPT117

      • Measuring range : 0.1 to 10 kN
      • Indication error : < ± 1%
      ★ ★ ★ ★ ★
      Compression tester 61-PPT118

      Compression tester 61-PPT118

      • Measuring range : 1 to 50 kN
      • Indication error : < ± 1%
      ★ ★ ★ ★ ★
      Air permeability tester 61-PPT119

      Air permeability tester 61-PPT119

      • Measuring range : 0 to 1000 ml/min
      • Test area : 10 ± 0.02 cm2
      ★ ★ ★ ★ ★
      Internal Ply bond Tester 61-PPT120

      Internal Ply bond Tester 61-PPT120

      • Capacity : A: 20 to 500 J/m2 B: 500 to 1000 J/m2
      • Impact angle : 90°
      ★ ★ ★ ★ ★
      Puncture strength tester 61-PPT121

      Puncture strength tester 61-PPT121

      • Measuring range : A (1 to 6) J indicating error ± 0.05 J
        B (1 to 12) J indicating error ± 0.05 J
        C (1 to 24) J indicating error ± 0.05 J
        D (1 to 48) J indicating error ± 0.05 J
        The indicating errors w.r.t measurement range of 20 to 80 %
      • Frictional resistance : <0.25 J
      ★ ★ ★ ★ ★
      Paper tearing tester 61-PPT122

      Paper tearing tester 61-PPT122

      • Measuring range : 0 to 1000 mN
      • Resolution : 0.1 mN
      ★ ★ ★ ★ ★
      Electronic Tearing tester 61-PPT123

      Electronic Tearing tester 61-PPT123

      • Capacity : 10 -16000 mN
      • Resolution : 0.1 mN
      ★ ★ ★ ★ ★
      Mullen burst tester / carboard bursting tester 61-PPT124

      Mullen burst tester / carboard bursting tester 61-PPT124

      • Measurement range : 0 to 5600 kPa
      • Accuracy : ± 0.5 % F.S.
      ★ ★ ★ ★ ★
      Mullen burst tester/ paper bursting tester 61-PPT125

      Mullen burst tester/ paper bursting tester 61-PPT125

      • Measurement range : 0 to 1600 kPa
      • Accuracy : ± 0.5 % F.S.
      ★ ★ ★ ★ ★
      Crush tester 61-PPT126

      Crush tester 61-PPT126

      • Measurement range : 5 to 500 N, 50 to 3000 N
      • Resolution : 1 N
      ★ ★ ★ ★ ★
      Automatic bekk smoothness tester 61-PPT127

      Automatic bekk smoothness tester 61-PPT127

      • Measuring scope : ( 1 to 9999) s, divided in to (1 to 15) s, (15 to 300) s, (300 to 9999) s, the automatic (no. more than 200 s)
      • Accuracy : ±0.1 s within 300 s
      ★ ★ ★ ★ ★
