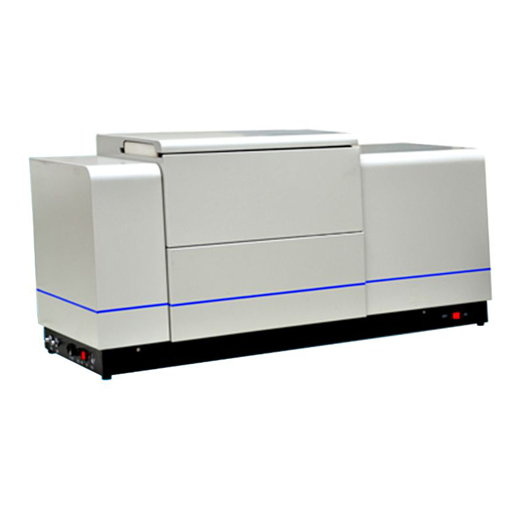

Laser Particle Size Analyzer 50-LPA200

Name: Laser Particle Size Analyzer 50-LPA200
Brand: Labsearch
SKU: 50-LPA200
Rating: 5.0 (251 reviews)

Laser particle size analyzer using air as a dispersion medium is a fully automatic dry dispersion laser particle size analyzer. It is an intelligent equipment that uses laser light scattering principle for measuring over 0.1 μm to 2000 μm particle size range. In addition, it has a new generation dispersion device, high precision feeding device along with high precision-automatic calibration system.

★ ★ ★ ★ ★

Get Quote

Measuring range	0.1 μm - 2000 μm
Principle	Laser light scattering
Test speed	< 1 min
Dispersion type	Dry-turbulence dispersion
Sample type	Powders
Dispersion media	Compressed air or nitrogen
Light source	High performance He-Ne Laser, λ= 632.8 nm
Operation mode	Fully automatic
Detector channels no.	100 pcs.
Detector arrangement	Long-spaced array
Angular range	0.0155 - 145 degrees
Optical calibration system	Automatic
Feeding	Automatic vibration feeding
Repeatability	< 1 %
Sample tank volume	< 1 %
Software running	Win XP/Win7
Outer dimension (L x W x H)	1050 x 440 x 540 mm
Net weight	58 kg

Converging fourier transform light path
Laser diffraction particle size measurement principle
Uses air as a dispersion medium
Turbulence dispersion principle ensures complete dispersion of sample
High precision feeding device
Patent powder spray pump
Oil-free silent gas source
High precision-automatic calibration system
Unconstrained free-fitting technique
high speed collection of particle information
Test report output and display forms can be designed by the user according to the industry requirements
Manual and automatic mode of operation makes it user friendly

Dry laser particle size analyzer is used for dyes, pigments, fillers, coal dust, additives, pesticides, explosives, graphite, photographic materials, metal and non-metal powder, carbonated calcium, kaolin and other powder industry
