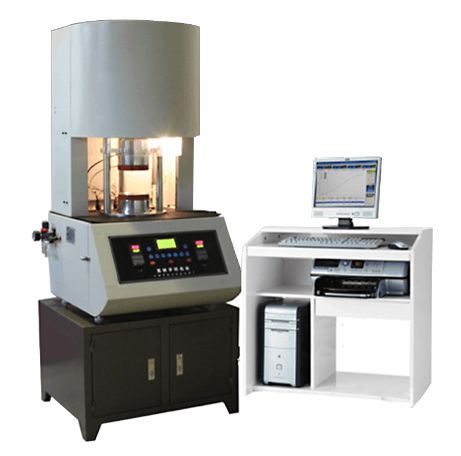

No rotor rheometer 61-RTI100

Name: No rotor rheometer 61-RTI100
Brand: Labsearch
SKU: 61-RTI100
Rating: 4.9 (443 reviews)

It is a No rotor rheometer where rubber sample is enclosed in mold cavity, maintained at test temperature. The mold cavity comes in two parts, where lower part (swing oscillations) determines strain as the reaction torque of the mold cavity (force). The PID controlled microprocessor technology controls and detects change in temperature. LCD screen display the real vulcanization curve and temperature curve, adjust the test data, store test results.

★ ★ ★ ★ ★

Get Quote

Temperature tester	Room temperature to 200°C
Temperature display resolution	0.1°C
Temperature control accuracy	≤ ± 0.3°C
Rotor speed	100 times/ min
Die cavity frequency	1.7 Hz
Sway angle	± 0.5°, ± 1°, ± 3°
Air compression	0.5 MPa to 0.65 MPa
Ambient temperature	0 to 35°C
Test result	Printed date, time, temperature, vulcanization curve, temperature curve ML, MH, ts1, ts2, t10, t50, Vc1, Vc2
Display	Windows 7 + software
Torque range	0 to 5 NM, 0 to 10 NM, 0 to 20 NM
Torque resolution	0.001 NM
Product dimension	1310 × 560 × 620 mm
Weight	250 kg
Power supply	Single phase, 220 V ± 10%, 50 Hz

PID controlled microprocessor technology LCD Display
Use of highly imported precision sensors
Statistics, analysis, storage and comparison functions
Can print automatic processing, calculations results
Non curing viscometer monolithic rotor controlled
User-friendly design appearance, easy to operate
Supplied with data acquisition system
Finds the vulcanization time for gelatin
