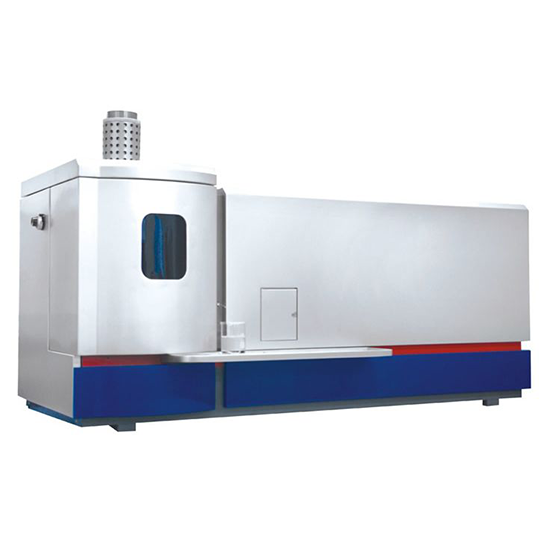

ICP Spectrometer 60-ICP102

Name: ICP Spectrometer 60-ICP102
Brand: Labsearch
SKU: 60-ICP102
Rating: 5.0 (359 reviews)

ICP Spectrometer detects micro and macro elements using argon plasma with an analyzing rate of 10 elements per minute. Results can be achieved with lower levels of detection for qualitative and quantitative analysis. Detection of liquid flow from the spray chamber by optical drain sensor offers exceptional sensitivity and accuracy. Accurate signal-background ratio is attained by advanced control system.

★ ★ ★ ★ ★

Get Quote

Wavelength range	195 to 800 mm
Elements per minute	10 elements
Temperature range	32 °C
Incident slit	20 µm
Standard deviation	RSD ≤ 2 %
Correlation coefficient	≥ 0.9995 %
Gas source	Argon ( 99.99 % )
Plasma gas flow meter	100 ~ 1000 L / h ( 1.6 - 16 L / min )
Auxillary gas flow meter	10 ~ 100 L / h ( 0.16 – 1.66 L / min )
Carrier gas flow meter	0 ~ 5 L / min
Cooling water flow rate	5 L / min
Cooling water temperature	20 ~ 26 °C
Water outlet diameter	10 mm
Line dispersion rate	0.26 nm
Resolving power	≤ 0.008 nm
Co-axial sprayer diameter	6 mm
Coil diameter	25 mm ( 3 turn )
Double room fog diameter	34 mm
Quartz tube torch diameter	20 mm
Mirror dimensions	78 x 105 x 16 mm

Rapid analysis – 15 elements per minute
Optical pathway – Czerny-turners
Low detection limit
Detection of multi-elements including non-metallic
Single and multi-element measurement method
Indication for wavelength error and repeatability
Range of measurement – common to trace

Used in clinical analysis for detection of metals in biological fluids , environmental analysis for trace element detection in water , soil , plants , pharmaceuticals for traces of catalysts and poison metals like Cd , Pb , industries for noble metal detection
