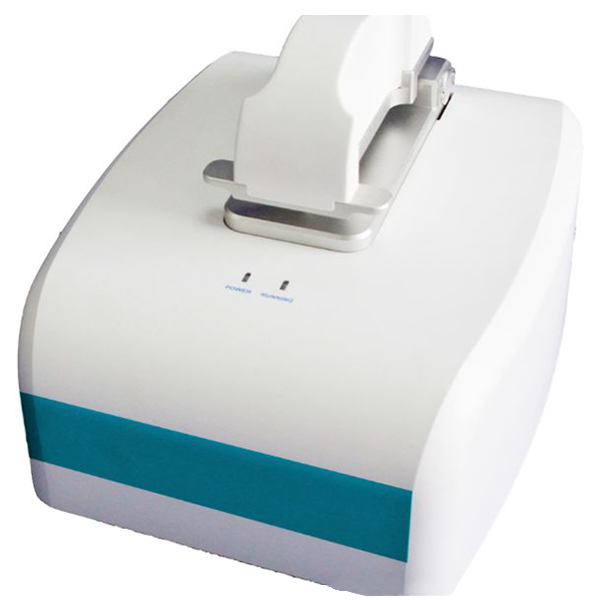

Nano Spectrophotometer 15A-NSP100

Name: Nano Spectrophotometer 15A-NSP100
Brand: Labsearch
SKU: 15A-NSP100
Rating: 5.0 (280 reviews)

Nano spectrophotometer with full spectrum light covers wide wavelength range of 200 to 800nm. It requires only 0.5 - 2.0 µl micro-volume sample for measurement which takes place within 5 seconds. It utilizes CCD detector, Xenon flash lamp as light source which has high stability and long operating life. They are used to detect micro volume quantities of nucleic acids and other concentrated or dilute components.

★ ★ ★ ★ ★

Get Quote

Wavelength range	200 - 800 nm
Path length	0.2 mm (For high concentration measurement); 1.0 mm (For ordinary)
Wavelength accuracy	± 1 nm
Wavelength Resolution	≤ 3 nm (FWHM at Hg 546 nm)
Minimum Sample size	0.5 - 2.0 µl
Absorbance range	0.02 - 90 A (10mm equivalent)
Absorbance precision	0.003 Abs
Absorbance accuracy	1 % ( 7.332 Abs at 260 nm)
Light source	Xenon flash lamp
Measurement time	< 8 s
Operating Voltage	24 V DC
Sample Pedestal Material	Aluminum alloy and Quartz fiber
Detector Type	3864-element linear silicon CCD array
Software Compatibility	Windows 7, Windows XP
Detects nucleic acid up to	2 - 4500 ng/µL (dsDNA)
Operating Power Consumption	20 W
Standby Power Consumption	5 W
Dimension	200 x 250 x 166 mm
Weight	2.6 kg

0.5 µl - 2.0 µl micro-volume sample for direct measurement onto pedestal
Wavelength range 200 - 800 nm with scan capability within 5 seconds
User friendly software
Long life Xenon flash lamp (10 flashes up to 10 years)
Highly concentrated samples can be used
Direct Concentration display
No cell or cuvettes are required

Nano spectrophotometer are used in detection of micro volume quantities of DNA/RNA and chemicals , liquids and its components in laboratory, food industries, chemistry, microbiology, medicine research and development.

Nano Spectrophotometer 15A-NSP100 Catalog

Atomic Absorption Spectrophotometer

Atomic Absorption Spectrophotometer 15A-AAS100

Monochromator : Czerny-Turner

Wavelength range : 190 – 900 nm

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS101

Wavelength range : 190 - 900 nm

Spectral Bandwidth : 0.2 nm, 0.4 nm, 0.7 nm, 1.4 nm, 2.4 nm, 5.0 nm

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS103

Wavelength range : 180 - 900 nm

Spectral Bandwidth : 0, 0.2, 0.4, 1.0, 2.0nm (Automatic setting)

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS104

Wavelength range : 180 – 900 nm

Spectral Bandwidth : 0 nm, 0.2 nm, 0.4 nm, 1.0 nm, 2.0 nm (5 steps with automatic changeover)

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS105

Wavelength range : 180 – 900 nm

Spectral Bandwidth : 0.1 nm,0.2 nm,0.4 nm, 1.0 nm, 2.0 nm automatic setting

★ ★ ★ ★ ★

Double Beam UV/Vis Spectrophotometer

Double Beam UV/Vis Spectrophotometer 15A-DUS105

Wavelength range : 190 ~ 1100 nm

Spectral bandwidth : 2 nm

★ ★ ★ ★ ★

NIR Spectrophotometer

NIR Spectrophotometer 15A-NIR100

Wavelength range : 900 ~ 1700 nm

Wavelength accuracy : ± 1 nm

★ ★ ★ ★ ★

Portable Spectrophotometer

Portable spectrophotometer 15A-PSP100

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.05

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP101

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.015 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),br/> Maximum：0.03

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP102

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.05

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP103

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.02(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.04

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP104

Illumination : Observation angles 2°/10°
Illumination: d/8 (Diffused lighting, 8° observation angle)
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.015 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum：0.04

★ ★ ★ ★ ★

Table top Spectrophotometer

Table top spectrophotometer 15A-TTS100

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS101

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS102

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 15.2 cm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS103

Illumination system : d/0 (Diffused lighting, 0° observation viewing), SCS optical engine (light splitting and integration system), ETC (every time calibration technology), SCI (specular reflection included)/ SCE (specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★
