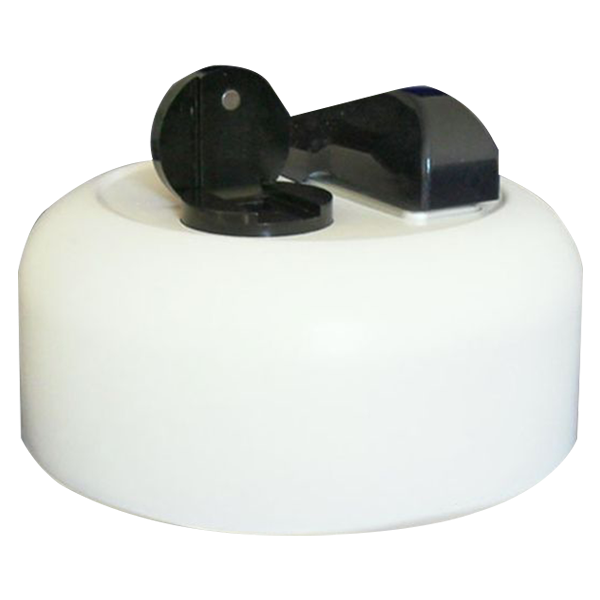

Nano Spectrophotometer 15A-NSP102

Name: Nano Spectrophotometer 15A-NSP102
Brand: Labsearch
SKU: 15A-NSP102
Rating: 5.0 (268 reviews)

Nano spectrophotometer is micro volume UV spectrophotometer which takes measurements at 230 nm, 260 nm, 280 nm. It utilizes CCD detector, Xenon flash lamp as light source which has high stability and long operating life. They are used to detect micro volume quantities of nucleic acids and other concentrated or dilute components is specially designed to analyze the concentration of pure of nucleic acid. The data can be printed with built in printer and can be transferred via SD- RAM card or USB. It requires only minimal amount of sample for accurate measurement.

★ ★ ★ ★ ★

Get Quote

Wavelength range	200 - 850 nm
Path length	1 mm, 2 mm, 5 mm, 10 mm
Wavelength accuracy	± 1 nm
Wavelength Resolution	2 nm (FWHM at Hg 546 nm)
Minimum Sample size	0.3 - 2.0 µl
Absorbance range	0.00 2 ~ 75 A (150, 300 optional, 10mm equivalent absorbance)
Absorbance precision	0.002 Abs
Absorbance accuracy	1 % (0.76 absorbance at 350 nm)
Light source	Xenon flash lamp
Measurement time	< 5 s
Detector Type	2048-element linear silicon CCD
Detects nucleic acid up to	4 - 3750 ng/µL (7500,15000 optional, dsDNA)
Detects protein up to	0.01 - 100 mg/mL (200, 400 optional, BSA)
Dimension	240 x 210 x 110 mm
Weight	1.92 kg

Wavelength measurement at 230 nm, 260 nm, 280 nm
0.5 µl - 2.0 µl micro-volume sample for direct measurement onto pedestal
Rapid measure speed
Touch screen & panel operations with user friendly software
Long life Xenon flash lamp (10 flashes up to 10 years)
Highly concentrated samples can be used
Direct Concentration display
No cell or cuvettes are required
No necessary of PC

Nano spectrophotometer are used in detection of micro volume quantities of DNA/RNA and chemicals , liquids and its components in laboratory, food industries, chemistry, microbiology, medicine research and development.

Nano Spectrophotometer 15A-NSP102 Catalog

Atomic Absorption Spectrophotometer

Atomic Absorption Spectrophotometer 15A-AAS100

Monochromator : Czerny-Turner

Wavelength range : 190 – 900 nm

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS101

Wavelength range : 190 - 900 nm

Spectral Bandwidth : 0.2 nm, 0.4 nm, 0.7 nm, 1.4 nm, 2.4 nm, 5.0 nm

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS103

Wavelength range : 180 - 900 nm

Spectral Bandwidth : 0, 0.2, 0.4, 1.0, 2.0nm (Automatic setting)

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS104

Wavelength range : 180 – 900 nm

Spectral Bandwidth : 0 nm, 0.2 nm, 0.4 nm, 1.0 nm, 2.0 nm (5 steps with automatic changeover)

★ ★ ★ ★ ★

Atomic Absorption Spectrophotometer 15A-AAS105

Wavelength range : 180 – 900 nm

Spectral Bandwidth : 0.1 nm,0.2 nm,0.4 nm, 1.0 nm, 2.0 nm automatic setting

★ ★ ★ ★ ★

Double Beam UV/Vis Spectrophotometer

Double Beam UV/Vis Spectrophotometer 15A-DUS105

Wavelength range : 190 ~ 1100 nm

Spectral bandwidth : 2 nm

★ ★ ★ ★ ★

NIR Spectrophotometer

NIR Spectrophotometer 15A-NIR100

Wavelength range : 900 ~ 1700 nm

Wavelength accuracy : ± 1 nm

★ ★ ★ ★ ★

Portable Spectrophotometer

Portable spectrophotometer 15A-PSP100

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.05

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP101

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.015 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),br/> Maximum：0.03

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP102

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.05

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP103

Illumination : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.02(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals)
Maximum：0.04

★ ★ ★ ★ ★

Portable spectrophotometer 15A-PSP104

Illumination : Observation angles 2°/10°
Illumination: d/8 (Diffused lighting, 8° observation angle)
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Repeatability : Light splitting reflectivity：standard deviation within 0.08%
Color values:ΔE*ab<=0.015 (After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum：0.04

★ ★ ★ ★ ★

Table top Spectrophotometer

Table top spectrophotometer 15A-TTS100

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS101

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS102

Illumination system : d/8 (Diffused lighting, 8° observation angle)
SCS optical engine (light splitting and integration system)
ETC (real time calibration technology )
SCI (specular reflection included) & SCE(specular reflection excluded) simultaneous measurement

Size of integrated sphere : 15.2 cm, alvan diffused reflection surface coating

★ ★ ★ ★ ★

Table top spectrophotometer 15A-TTS103

Illumination system : d/0 (Diffused lighting, 0° observation viewing), SCS optical engine (light splitting and integration system), ETC (every time calibration technology), SCI (specular reflection included)/ SCE (specular reflection excluded) simultaneous measurement

Size of integrated sphere : 40 mm, alvan diffused reflection surface coating

★ ★ ★ ★ ★
