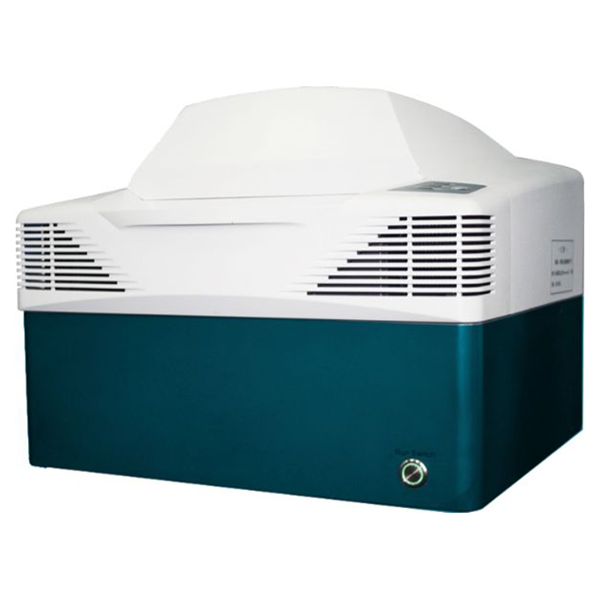

Real Time PCR 62-RTP201

Name: Real Time PCR 62-RTP201
Brand: Labsearch
SKU: 62-RTP201
Rating: 5.0 (250 reviews)

Real time PCR comes with 96 well capacity PCR machine with, 1 to 36°C gradient temperature range, and fast speed dual colour scanning mode. Its wide fluorescence wavelength range with innovative 4 channel design, optimizes thermal performance and maximizes convenience during operation. With its unique block dissipation technology, it provides precise temperature control and thermal gradient which easily optimizes PCR assays.

★ ★ ★ ★ ★

Get Quote

Sample Capacity	96-Well PCR plate12 × 8-strip 96 × 0.2 ml(Bottom Transparent)
Emission Wavelength	500 to 800 nm
Excitation Wavelength	300 to 800 nm
Sample Volume Range	5 to 100μl
Program	Max 20 Segments for Each Program, Max 99 Cycles
Dynamics Range	10 to 10¹⁰ Copies
Max. channels number of fluorescence detection	4 channels
Detected Fluorescence	F1 : FAM, SYBR Green 1; F2 : VIC, HEX, TET, JOE; F3 : CY3, NED, TAMRA; F4 : ROX,TEXAS-RED
Block Temp. Range	4 to 105℃ (Minimum Increment: 0.1℃), SOAK Low Temp. Conservation Function
Temp. Control Accuracy	≤ ± 0.1 ℃
Temp. Fluctuation	≤ ± 0.1 ℃
Temp. Uniformity	≤ ± 0.3 ℃
Ramping Rate	4.0 ℃/sec
Temp. Control Mode	BLOCK/Tube Simulation Mode (Automatic Control based On Sample Volume )
Gradient Temp. Range	1 to 36 ℃
Hot-lid Temp. Range	30 to 110℃ (Adjustable, default 105℃, Automatic Hot-lid )
Fluorescence Detection Repeatability	0.05
Operation Mode	Continuous
Scan Mode	Entire Plate or Designated Line
Scan Period	5.5 sec
Operation System	Microsoft: Windows2000/XP/vista/Windows7 Software: Excel2003/2007 Access: 2003/2007
PC Configuration	Memory : 512 M; Hard Disk : 10 GB; CPU : Pentium® 4; Virtual Memory : ≥ 1000 MB
Power Supply	100 to 240 V, 50/60 Hz, 600 W
Dimension ( L × W × H )	430 x 395 x 352 mm
Socket	RS 232C Adapter

Ferrotec Peltier cooler with improved efficiency and long life
Wide range of block temperature (4-105°C) with SOAK low temperature function
4 individual filters cover wide range of fluoresence detection wavelength
Easy data transfer via USB and Bluetooth
Real time fast double wavelength X-Y scan system
High long life LED
Dual high sensitivity PMT (photomultiplier tube) synchronous detection
Panoramic view of experimental results
