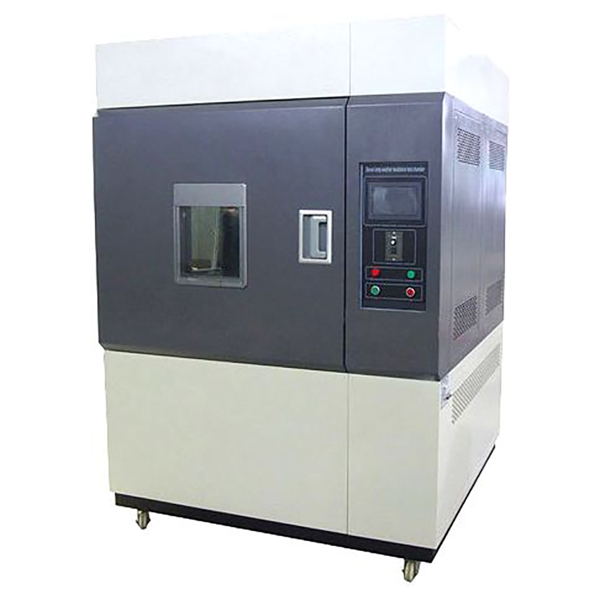

Xenon Test Chamber 24-XTC103

Name: Xenon Test Chamber 24-XTC103
Brand: Labsearch
SKU: 24-XTC103
Rating: 4.9 (344 reviews)

This is a complete weather testing instrument that support climate aging test, polymer fixing test with respect to light resistance. With the help of ecological stimulation such as rain, humidity, temperature control and light (Xenon arc lamp to stimulate destructive waves for diverse environment) a large spectrum of environmental conditions-based aging of materials can be tested.

★ ★ ★ ★ ★

Get Quote

Bandwidth Measurement (nm)	300 - 420
Specimen Capacity (pcs)	34
Specimen holder size (mm)	80 × 15
Chamber Temperature Range	Ambient ~ 100 ℃ ± 2 °C
Irradiation Source	1 piece of 6500 W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter
Irradiance (W/㎡)	35 ~ 150
Black Panel Temperature	BPT 35 ~ 85 ℃ ± 2 °C
Average Lamp Life	1600 hours
Relative Humidity Range	50 ~ 98 % R.H ± 5 % RH
Water Spray cycle	1 ~ 9999 Hr 59 M, adjustable
Internal dimensions	950 × 950 × 850 mm
Overall dimensions	1300 × 1420 × 1800 mm
Power Supply	AC 380 V 50 Hz

Micro computer based temperature and humidity controller is used
Xenon arc lamp is used to simulate full sunlight spectrum
Equipped with 1 Water Cooled xenon arc lamp with inner quartz and outer borosilicate filter
User friendly and efficient
Comprises of ultrasonic humidifier and dehumidification system to ensure accurate and stable humidity test
Simulate daylight spectrum
Environment friendly Refrigerant R404A
Automatic water supply, water purification system, water saving
Coloured LCD screen display with different test monitoring mode namely, digital, graphics and animation
Provision to adjust light intensity
