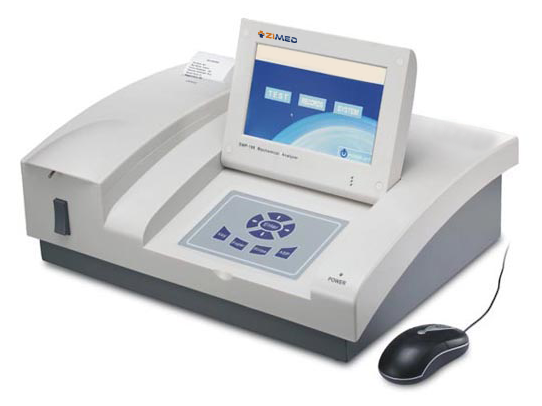

Semi-automatic Biochemistry Analyzer ZSBA-A11

Name: Semi-automatic Biochemistry Analyzer ZSBA-A11
Brand: Labsearch
SKU: ZSBA-A11
Rating: 5.0 (464 reviews)

ZSBA-A11 is clinical chemistry analyzing system designed for analyzation and quantification of clinical bio-chemical components with aspiration volume more than 100 µl and flow cell volume of 32 µl. Durable long life Halogen lamp as light source with seven standard high quality filters of wave length ranging from 340 nm to 670 nm.

★ ★ ★ ★ ★

Get Quote

Assay type	End-point, Two point, Kinetic, Reagent blank sample blank, Immunity nephelometry and Multiplication selectable calibration methods
Wave length	340 nm, 405 nm, 505 nm, 546 nm, 578 nm, 620 nm, 670 nm
Flow cell	32 µl quartz / metal flow cell
Aspirate volume	>100 µl
Light source	6V / 10 W Halogen lamp
Band width	8 nm
Absorbance range	0 to 3.000 Abs
Repeatability ( CV % )	≤ 1 %
Incubator ( working temperature )	37 °C, 30 °C, 25 °C
Temperature precision	± 0.1 °C
Display	7” TFT
Power supply	250 V / 100 V ( AC ) ; 50 Hz / 60 Hz

Assay method : End-point, Two point, kinetic, reagent blank sample blank, immunity Nephelometry, and multiplication selectable calibration methods
7 standard filters , 1 free position ( additional )
Wave lengths : 340 nm, 405 nm, 505 nm, 546 nm, 578 nm, 620 nm, 670 nm
Light source : Halogen lamp
Reagent Open system
Measurement method : Flow cell and cuvette
Real time display for result ( curve )
QC function : QC graph, QC parameters calculation, dual-level QC and out of control alarm
Memory : ≥ 1000 data storage
External key board and mouse
Internalized thermal sensitive and external printer
