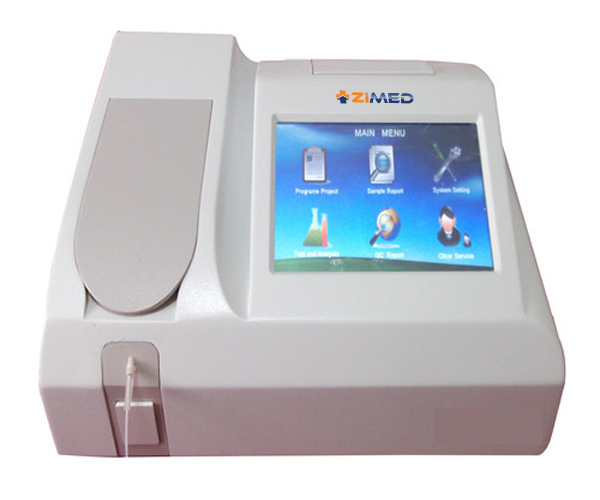

Semi-automatic Biochemistry Analyzer ZSBA-A12

Name: Semi-automatic Biochemistry Analyzer ZSBA-A12
Brand: Labsearch
SKU: ZSBA-A12
Rating: 4.9 (412 reviews)

ZSBA-A12 is clinical chemistry analyzing system designed for analyzation and quantification of clinical bio-chemical components with flow cell volume of 32 µl. Durable long life Halogen lamp as light source with seven standard high quality filters of wave length ranging from 340 nm to 630 nm.

★ ★ ★ ★ ★

Get Quote

Assay type	Kinetic, End point, Two point and Absorbance
Wave length	340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm
Flow cell	32 µl quartz glass
Sample volume	0 to 3000 µl ( ≥ 500 µl recommended )
Light source	6V / 10 W Halogen lamp
Band width	≤ 10 nm
Absorbance range	0 to 4.500 Abs
Repeatability ( CV % )	< 1 %
Incubator ( working temperature )	37 °C, 30 °C, 25 °C
Temperature precision	± 0.1 °C
Display	7” TFT
Power supply	240 V / 100 V ( AC ) ; 50 Hz / 60 Hz

Assay method : Kinetic, End point, Two point, Absorbance
7 standard filters , 1 free position ( additional )
Wave lengths : 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm
Light source : Halogen lamp
Reagent Open system
Measurement method : Flow cell and cuvette
Real time display for result ( curve )
Quality control : SD, CV%, L – J QC curve for all samples
QC function : QC graph, QC parameters calculation, dual-level QC and out of control alarm
Memory : ≥ 1000 data storage
External key board and mouse
Internalized thermal sensitive and external printer
