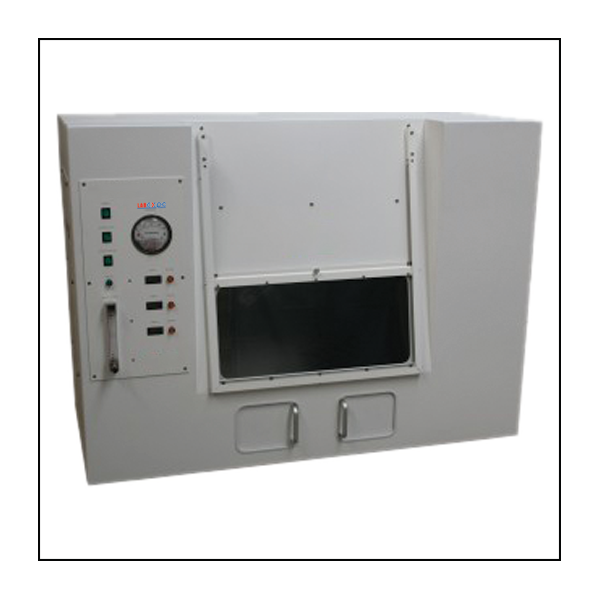

Flame Chamber 70-FC100

Name: Flame Chamber 70-FC100
Brand: Labsearch
SKU: 70-FC100
Rating: 4.9 (419 reviews)

70-FC100 Flame Chamber has been designed with modern technology to ensure that testing is user-friendly. The test measures the burning rate of samples positioned either horizontally or vertically. The instrument complies with the UL94 standard (excluding radiant panel testing).

★ ★ ★ ★ ★

Get Quote

Electrical	115 Volts AC 60Hz / 230 volts 50Hz
Ambient temperature	Operating 10°C to 35°C
Dimensions (W×H×D)	1.0m3 - 1500 x 826 x 1150 mm

Draft free corrosion coated chamber with a volume of > 1m3
Extraction system with low noise fans (62.5 dB) and back to draft damper
Constructed with large area opening tempered glass to allow easy observation
ASTM D5025 with a wingtip and adjustable burner angle such as 0˚, 20˚ and 45˚
Ergonomically designed access ports for sample and burner positioning
Designed with a large counterbalanced sliding door allowing for complete access
Installed with an integral control panel which includes three digital timer,pressure manometer,extractor switch and control,calibrated gas flow meter and gas solenoid control switch with indicator lamp
It has an interior light
Bench mounted design with optional support frame
Other ASTM test methods can also be performed on the apparatus

This test is widely applied throughout the industry especially in the electrical manufacturing industry and testing of electrical products.
