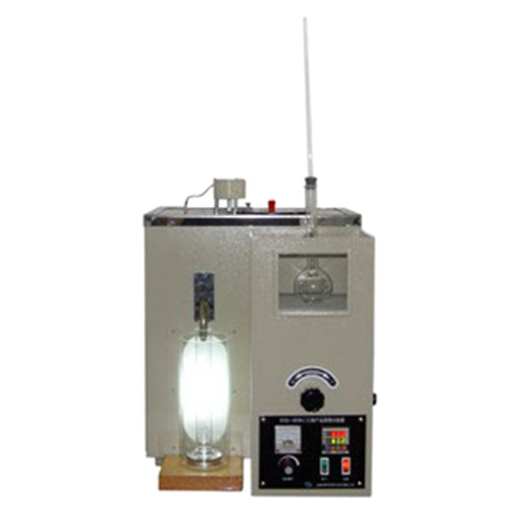

Distillation Tester (Low Temperature) 52-DTT107

Name: Distillation Tester (Low Temperature) 52-DTT107
Brand: Labsearch
SKU: 52-DTT107
Rating: 5.0 (480 reviews)

Distillation Tester (Low Temperature) 52-DTT107 is a single distillation system with advanced refrigerator compressor. It is devised according to “Test Methods for Distillation Characteristics of Petroleum Products at Barometric Pressure” as per ASTM D86.

★ ★ ★ ★ ★

Get Quote

Graduated flasks	100 ml
Distillation flask	125 mL
Ambient temperature	≤ 30 °C
Relative humidity	≤ 85 %
Temperature controlling range	0 °C ~ 60 °C
Temperature controlling accuracy	± 0.5 °C
Thermometer	(-2 )°C ~ 300 ℃ and (-2) °C ~ 400 ℃
Division value	1°C
Scale division	1 ml
Inner diameter of electric furnace	φ32 mm, φ38 mm
Outer diameter of electric furnace	φ50 mm
Dimension	720 x 590 x 660 mm
Heating power system	1000 W
Total power consumption	≤ 2500 W
Power supply	AC 220 V ± 10 %, 50 Hz

Total immersion rod type Thermometer
LED Digital display
Digital temperature controller, heater, refrigeration device and stirrer
Adjustable heating power

It is used to determine distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
