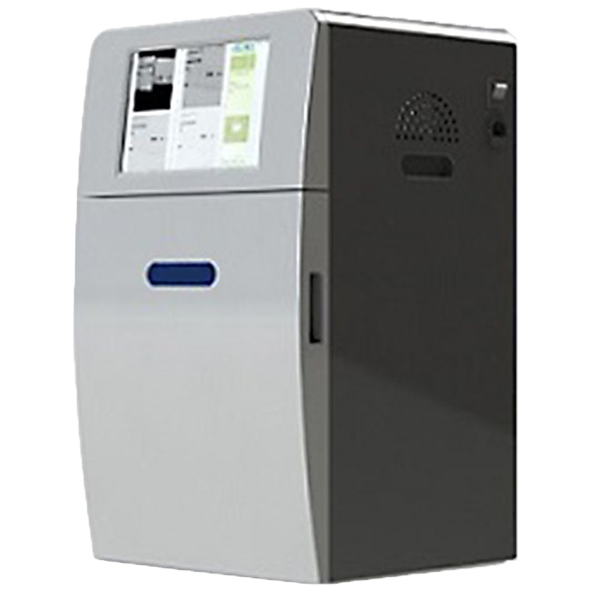

Chemilluminescence Imaging System 36-CIS101

Name: Chemilluminescence Imaging System 36-CIS101
Brand: Labsearch
SKU: 36-CIS101
Rating: 5.0 (498 reviews)

Chemiluminescence imaging system is based on chemiluminescence, offers exceptionally high sensitivity and dynamic range. This system is able to detect far weaker signals, offers higher sensitivity and wider linear range. It has 16-bit cooled CCD camera which reduces the background noise during long exposure time. This system offers precise automatic exposure, facilities to crop, rotate and counter colour process for the images obtained.

★ ★ ★ ★ ★

Get Quote

Display	10 inch digital display screen
Storage	64 GB SSD
CCD size	12.49 mm × 9.99 mm
Pixels	2750 × 2200, 4.54 × 4.54 um
A/D	16 bit
Quantum efficiency	> 78 %
Grayscale	65536
lens	F0.95 motorized lens
Epi-LED white	Yes
Light source	Blue LED light transmission
Cooling temperature	65 ºC below ambient
Filter wheel	Motorized wheel with 5 sockets
Filter	590 nm
Software	Image acquision and analysis software

Digital touch screen display for easy and quick operations
Convenient image navigation and browsing
Optional attachment of different fluorescent light sources and filters
Automatic pixel binning technology
Marker image capture and composition with objective bands

White LED light as source of transmission
Filters with range of 460 nm, 530 nm, 630 nm, 670 nm
Fluorescent LED light: 470 nm,530 nm, 620 nm

It has applications in genetic engineering, biotechnology, molecular biology for the obtaining high quality images of DNA/RNA bands using various fluorescent dyes, western blotting and for protein detection, ELISA plate reading etc.
