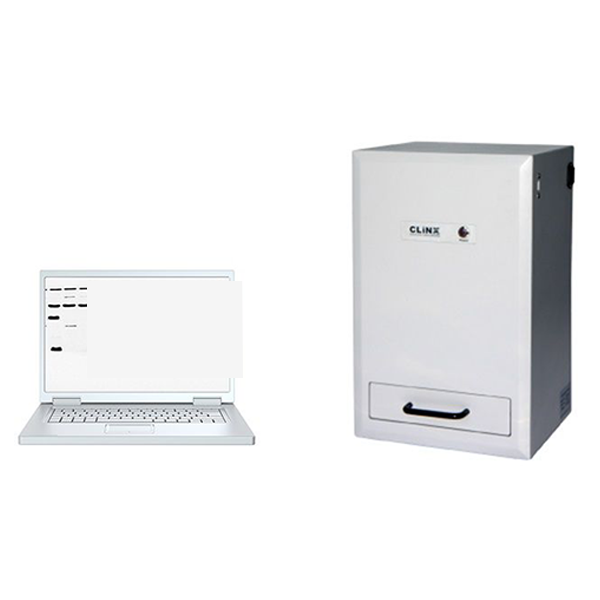

Chemilluminescence Imaging System 36-CIS102

Chemilluminescence Imaging System 36-CIS102

Chemiluminescence imaging system is based on chemiluminescence, offers exceptionally high sensitivity and dynamic range. This system is able to detect far weaker signals, offers higher sensitivity and wider linear range. It has 16-bit cooled CCD camera which reduces the background noise during long exposure time. This system offers precise automatic exposure, facilities to crop, rotate and counter colour process for the images obtained.

CCD size 12.49 mm × 9.99 mm
Pixels 2750 × 2200, 4.54 × 4.54 um
A/D 16 bit
Quantum efficiency > 78 %
Grayscale 65536
lens F0.95 ultrafast lens
Epi-LED white Yes
Cooling temperature 65 ºC below ambient
Filter wheel Motorized wheel with 5 sockets
Software Image acquision and analysis software
  • Compact in size
    Convenient image navigation and browsing
    Automatic pixel binning technology
    Marker image capture and composition with objective bands
  • It has applications in genetic engineering, biotechnology, molecular biology for the obtaining high quality images of DNA/RNA bands using various fluorescent dyes, western blotting and for protein detection, ELISA plate reading etc.

Gel documentation system

Gel documentation system 36-GDS100

  • QE : 0.7
  • CCD camera : 5 megapixels, Pixel density 16-bit

Gel documentation system 36-GDS101

  • QE : 0.82
  • CCD camera : 1.45 megapixels, Pixels density 16-bit
