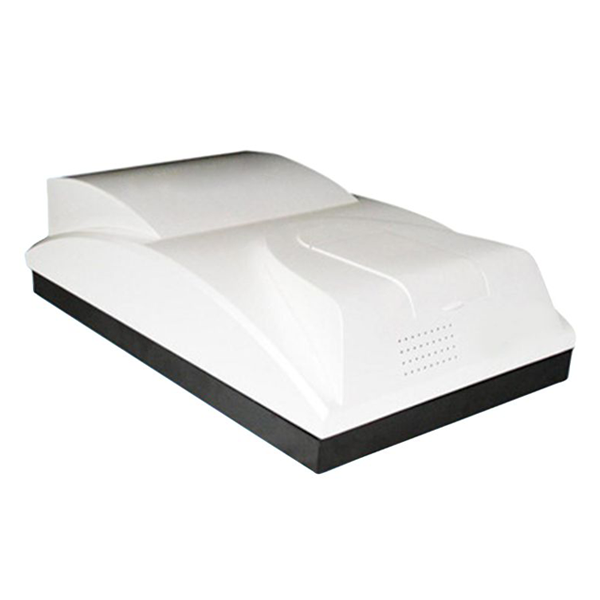

Nano-particle Size Analyzer 50-NPA100

Name: Nano-particle Size Analyzer 50-NPA100
Brand: Labsearch
SKU: 50-NPA100
Rating: 4.9 (338 reviews)

Nano-particle size analyzer having fast test speed is an easy to operate and highly precise particle size analyzer based on dynamic light scattering and Brownian movement principle for measuring wide particle size range of 1-10000 nm.

★ ★ ★ ★ ★

Get Quote

Measuring range	1 nm-10000 nm
Principle	Dynamic light scattering & Brownian motion
Test speed	< 5 min
Sample type	Suspension, emulsion and powders
Executive standard	ISO 13321:1996 ISO 22412:2008
Concentration range	0.1 mg/ml-100 mg/ml
Light source	Semiconductor laser, 532 nm
Scattering angle	90°
Temperature control	5-40°c
Digital correlator	256 channels
Accuracy	< 1 %
Repeatability	< 1 %
Sample cuvette	4 ml
Software running	Win XP/Win 7
Dimension (L x W x H)	480 x 270 x 170 mm
Net weight	12 kg

Dynamic light scattering particle size measurement principle to give the highest sensitivity for measurement of particle
Highly sensitive photomultiplier detector to ensure accuracy
Digital correlator with 8 ns high resolution speed
Capable of measuring suspension, emulsion and powders
Calculates particle diameter and distribution according to Stokes-Einstein equation
High precision constant temperature control system to ensure that samples are in a constant state throughout the testing process
Highly stable light system
High speed data collection and calculation
Easy to operate

Nano particle size analyzer is used: to characterize the size of carbon nanotubes in dispersion, to measure and control particle size distribution of cement, to detect oversize particles in inks and paints, to measure protein size etc.
