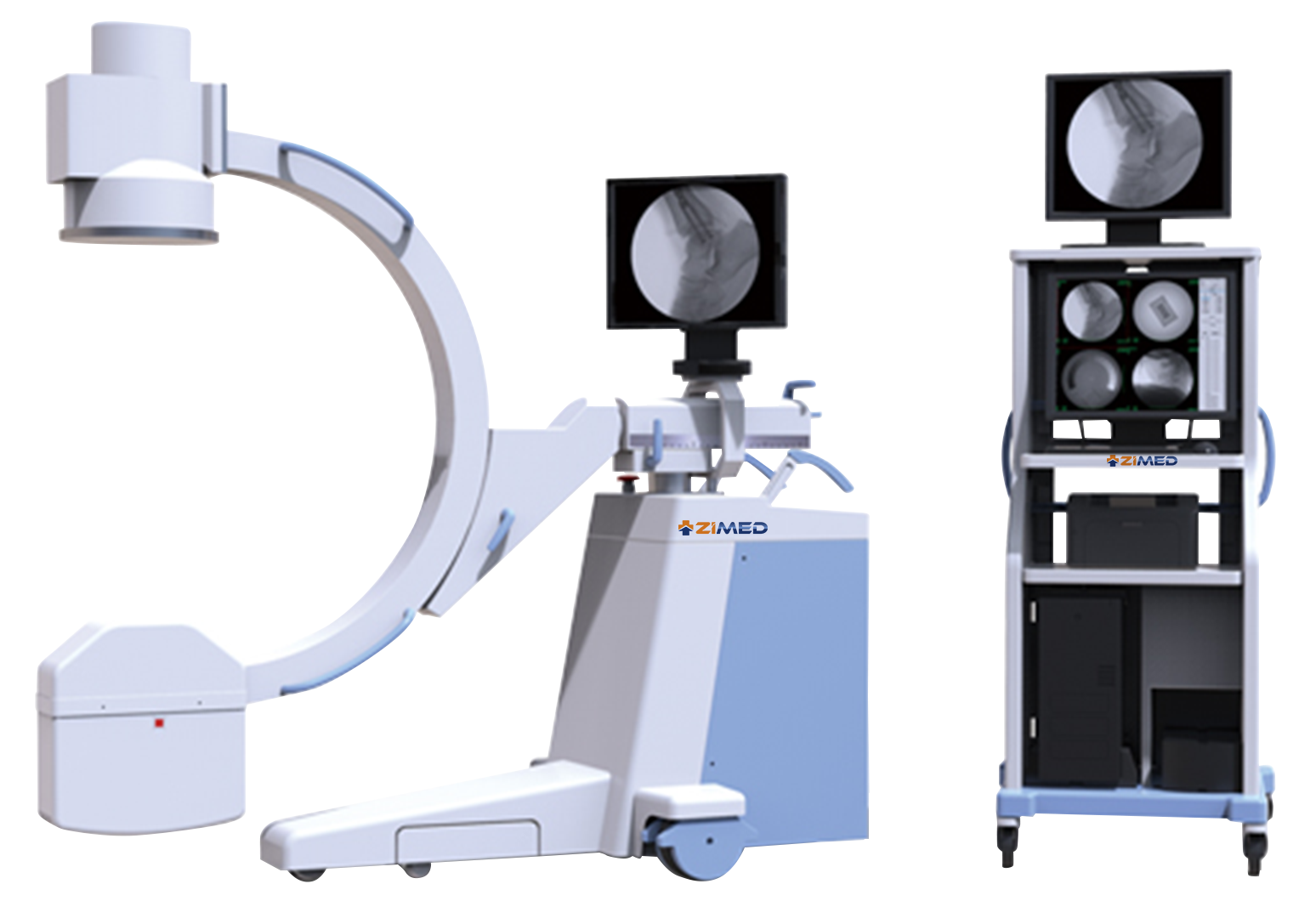

High Frequency C-Arm Radiography ZCAR-A10

Name: High Frequency C-Arm Radiography ZCAR-A10
Brand: Labsearch
SKU: ZCAR-A10
Rating: 4.9 (494 reviews)

C-Arm system ZCAR-A10 is an imaging diagnostic unit providing high resolution digital images with conversion of less intensity light into visible bright light. With an orbital rotation of 120 ° and a range of image intensifiers, precise images can be captured while repositioning the system. Ultra-low light charged couple detector helps in seamless high quality imaging.

★ ★ ★ ★ ★

Get Quote

Fluoroscopic Capacity	a:4:{s:12:"Tube voltage";s:13:"40 to 110 kV";s:12:"Tube current";s:11:"20 to 63 mA";s:44:"Tube voltage ( Automatic Fluoroscopy )";s:40:"40 kV to 110 kV ( automatic adjustment )";s:43:"Tube current ( Automatic Fluoroscopy )";s:11:"0.3 to 4 mA";}
Photographic Capacity	a:3:{s:22:"Maximum rated capacity";s:6:"3.5 kW";s:36:"Tube voltage and current combination";s:221:"40 to 49 kV ; 1 to 125 mAs 50 to 59 kV ; 1 to 110 mAs 60 to 69 kV ; 1 to 90 mAs 70 to 79 kV ; 1 to 80 mAs 80 to 89 kV ; 1 to 71 mAs 90 to 99 kV ; 1 to 63 mAs 100 to 110 kV ; 1 to 40 mAs";s:3:"mAs";s:12:"1 to 125 mAs";}
X-ray Tube	a:4:{s:11:"Fixed Anode";s:44:"Small Focus: 0.3 mm Large Focus: 1.5 mm";s:16:"Thermal capacity";s:5:"35 kJ";s:12:"Power supply";s:12:"220 V; 50 Hz";s:18:"Inverter frequency";s:6:"40 kHz";}
Video System	a:5:{s:17:"Image intensifier";s:8:"9 inches";s:21:"Charged couple camera";s:15:"Ultra-low light";s:7:"Monitor";s:11:"19 inch LCD";s:20:"Central control unit";s:48:"Upright, overturned, positive and negative image";s:12:"Work station";s:3:"Yes";}
Structure	a:3:{s:5:"Wheel";s:18:"± 90 ° rotation";s:14:"Vertical stand";s:6:"400 mm";s:16:"Orbital rotation";s:6:"120 °";}

Orbital rotation of 120 °
X-ray tube : Small and large focus
Storage of up to 8 high quality images
Optimal bright image resolution with automatic fluoroscopy tracking technique
Minimization of X-ray radiation
Digital workstation for visualization of working parameters
Automatic retention of last captured image

Used for orthopedics, in emergency rooms and for pediatric imaging.
