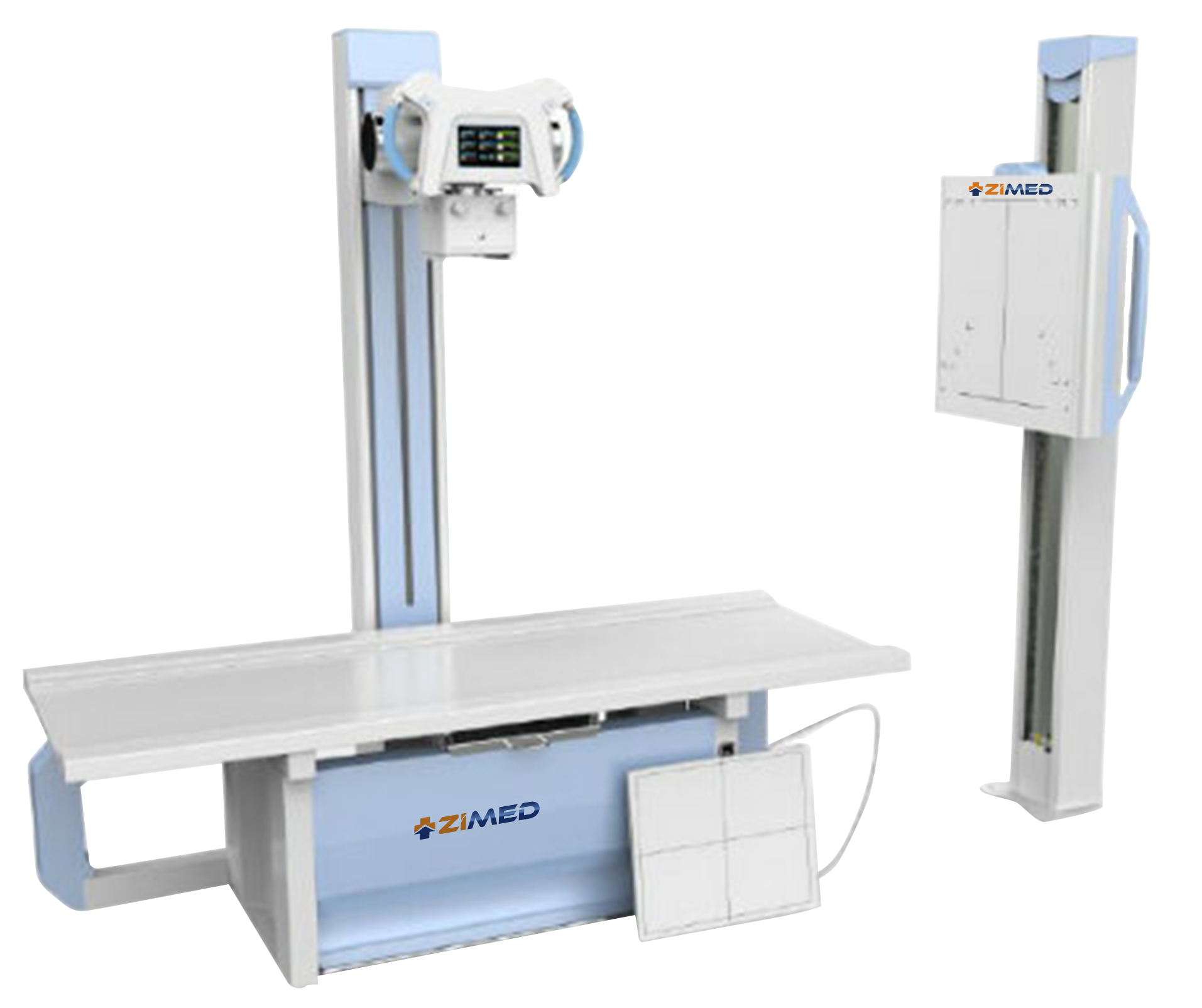

High Frequency Digital X-Ray Radiography ZDXR-A10

Name: High Frequency Digital X-Ray Radiography ZDXR-A10
Brand: Labsearch
SKU: ZDXR-A10
Rating: 4.9 (380 reviews)

ZDXR-A10 is a compact digital radiography machine featuring built in high frequency high voltage X-ray generator. Flat panel detector allow to experience digital imaging technology, high quality material radiography tables ensures optimal performance.

★ ★ ★ ★ ★

Get Quote

X-ray Machine	a:8:{s:12:"Tube voltage";s:15:"40 kV to 150 kV";s:12:"Tube current";s:15:"10 mA to 630 mA";s:5:"Focus";s:15:"0.6 mm / 1.2 mm";s:4:"Time";s:12:"2 to 6300 ms";s:5:"Power";s:18:"380 V ± 38 V (AC)";s:19:"Internal resistance";s:15:"380 V : 0.5 Ω";s:14:"Rotating speed";s:8:"2800 rpm";s:27:"Allowed frequency variation";s:22:"50 Hz to 60 Hz ± 1 Hz";}
Digital Detector	a:4:{s:11:"Screen size";s:13:"17 × 17 inch";s:18:"Image preview time";s:19:"Not more than 2 sec";s:11:"Pixel pitch";s:3:"127";s:18:"Special resolution";s:23:"Not less than 3.9 lp/mm";}
Radiography Machine Frame	a:5:{s:14:"Operation mode";s:19:"Manual / electronic";s:16:"Horizontal shift";s:10:"≥ 250 mm";s:14:"Vertical shift";s:10:"≥ 825 mm";s:15:"Table tope size";s:21:"2100 × 825 × 655 mm";s:21:"Maximum Load capacity";s:7:"250 kgs";}

Dual focus X-ray tube
Flat panel digital detector
Manual mode operating collimator
High quality grid : 1000 mm to 1800 mm
High voltage cable : 75 kV

Used in hospitals and clinic for angiographic studies, Therapeutic studies and orthopedic studies.
