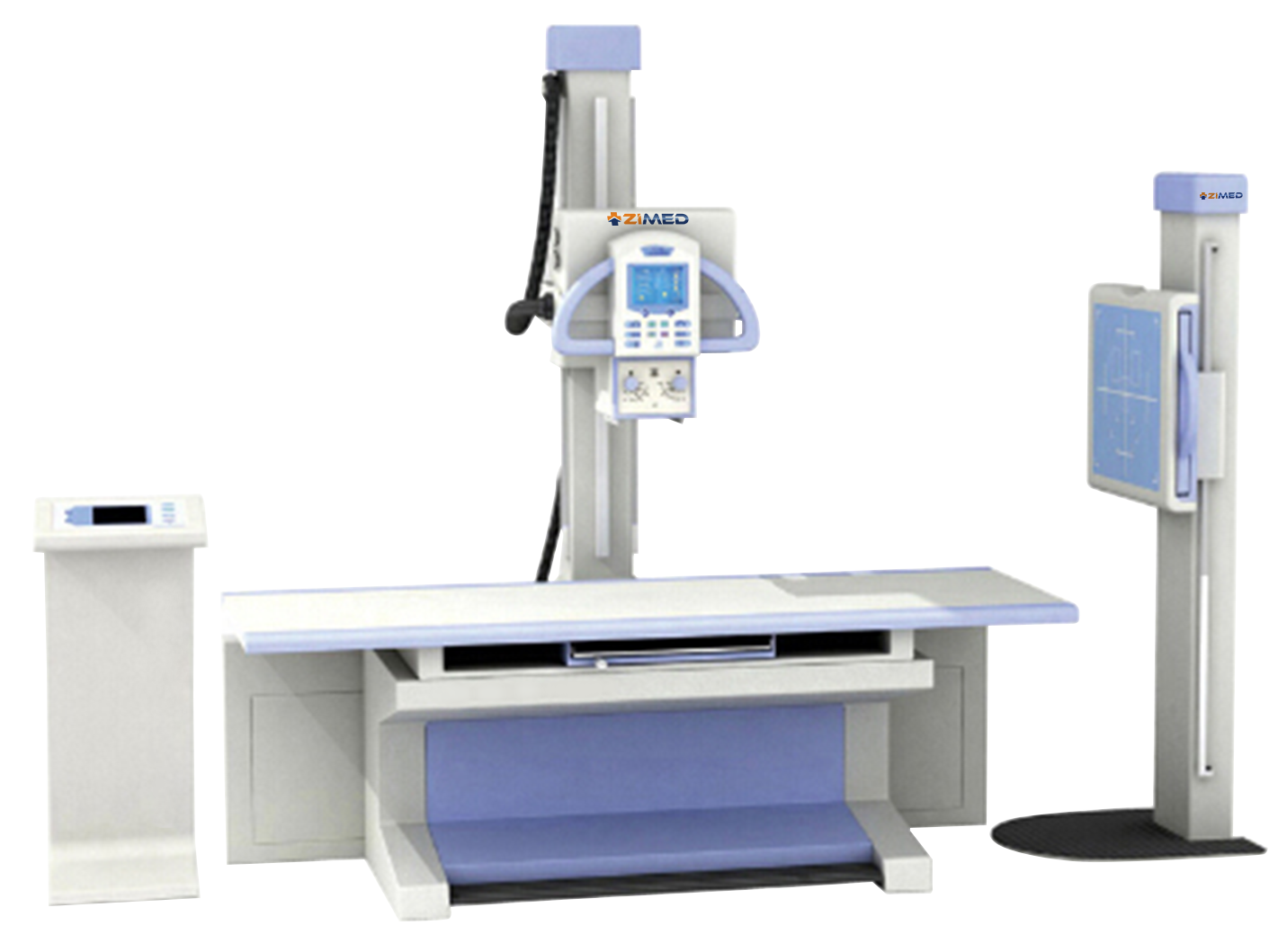

High Frequency X-Ray Radiography ZXRR-A10

Name: High Frequency X-Ray Radiography ZXRR-A10
Brand: Labsearch
SKU: ZXRR-A10
Rating: 4.9 (397 reviews)

ZXRR-A10 is a compact stationary X-ray radiography machine featuring built in high frequency and high voltage inverter to emit good quality X-rays using a single point detector. Hence it maintains superior image quality at minimal radiation dosage. Radiation table is based on electromagnetic brake which helps them to be in stationary position.

★ ★ ★ ★ ★

Get Quote

Power output	25 kW
Inverter frequency	40 kHz
X-ray tube (dual focus)	Large focus: ( 1.3 × 1.3 ) mm Small focus : (0.6 × 0.6 ) mm
Tube current	200 mA
Rotatory anode speed	3000 rpm
Tube voltage	40 kV to 125 kV
Power supply	200 mA
X-ray tube rotation	380 V; 50 Hz
Table size	± 90 °
Table height	2000 mm × 760 mm
Transverse travel of table	≤ 700 mm
Longitudinal travel of table	±110 mm (Electromagnetic brake)
Floor stand rotation	±325 mm (Electromagnetic brake)
Floor stand longitudinal travel	360 °
Axial rotation	≥ 1350 mm
SID (Source to image distance)	0 to 35 °

High frequency and high voltage generator
Radiographic parameters depend upon physical character of patient such as multi-site, adult, pediatric
Bucky stand for head, chest, belly, pelvic cavity and backbone imaging
Radiographic table with electromagnetic brake is movable, guarantees the accurate and simple position
LCD touch screen graphic control alters radiographic parameters
Automatic fault detection and safeguard system

Used as multipurpose radiography. It used to get images in lying, sitting and standing position.i.e. Images of head, chest, legs, belly and arm.
