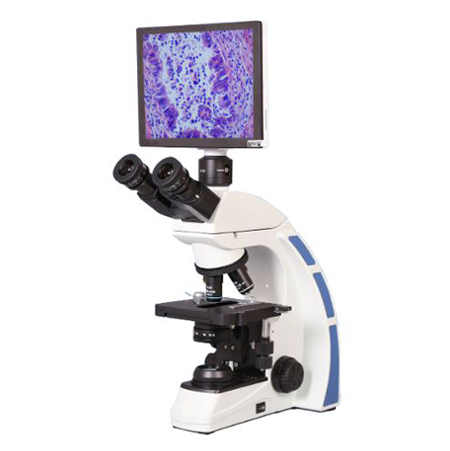

      Digital Microscope 43-DMS100

      Digital Microscope 43-DMS100

      Digital microscope allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.

      • ★ ★ ★ ★ ★
      Get Quote
      Optical system Infinite optical system
      Viewing head Trinocular head, inclined at 30º, interpupillary distance 54 mm-75 mm
      Eyepiece High eye point wide field plan eyepiece PL10X/22 mm, with ±5 diopter control
      Objectives Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil)
      Stage Coaxial mechanical stage: 140 x130 mm
      Travel stage: 76x50 mm
      Condenser Kohler N.A. 1.25 condenser (with socket for phase contrast& dark field sliders)
      Focusing Coarse and fine focusing adjustment with limited and tension adjustment.
      Coarse adjustment range 25 mm, fine adjustment precision:0.002 mm
      Nosepiece Backward quadruple nosepiece
      Illumination Main supply 100 V ~ 240 V, 3W LED lamp with intensity control (fixed center)
      LCD Screen 9.7 inch TFT touch screen
      Output USB 2.0, HDMI
      Operating system Android 4.2.2
      Software IMS camera
      Valid Pixel 5.0 Mega pixel
      Dimension 300×320×160 mm
      Net weight 1 kg
      Gross weight 2 kg
      Power supply 85 V ~ 265 V universal power supply
      • Infinite optical system
        Android 4.2.2 O.S. with 5.0 mega pixel LCD TFT screen resolution
        Infinity plan achromatic objective
        3W LED lamp with intensity control for illumination
        Advanced technology software IMS camera, Touch scope
      • Accessories No. Name
        1 Dark field slider for condenser
        2 Simple polarization (with analyzer & polarizer)
        3 Phase contrast kit (10x, 20x, 40x, 100x)
      • Digital microscope has wide and promising applications in the fields of bacteriology, cytology, botany, medical research field to study the details of the specimen on LCD screen.
