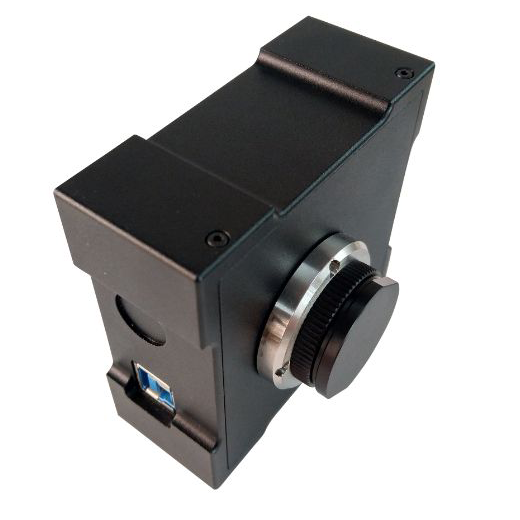

      Microscopic Camera 43-MSC102

      Microscopic Camera 43-MSC102

      Microscopic Camera comes with 2/3” CCD Sony ICX285 sensor, aluminum alloy shell and PCB design. With C-mount fitting attachment, better rate of frames readout per second, it gives better visual microscopic inspection & measurement of the specimen under study. Widely used as microscopic camera attachment across research institutes, gemology, forensic and other industries.

      • ★ ★ ★ ★ ★
      Get Quote
      Sensor type CCD Sony ICX285 sensor
      Camera type Black and white or color camera
      Sensor size 2/3”
      Resolution 5.0 MP
      Pixel size 3.45×3.45 µm
      Total active pixels 2456×2058 (12 bit)
      Resolution, display mode 9 fps at 2456 × 2058, ROI mode
      Peltier device No
      Scan mode Progressive scan mode
      Frame rate 9 fps @2456×2058
      Integrated filter Yes
      Shutter Global shut
      SNR 74 dB
      Spectral response range 400 to 1000 nm
      Refrigeration temperature Nil
      Data interface USB 3.0
      Power DC 5V ± 5%
      Current Appx 500 mA
      White balance Automatic regional white balance
      Auto exposure control 28 µs to 1.8 seconds
      Product indicator LED
      Working temperature 0 to 60°C
      Working Humidity 0 to 85% RH
      Lens mount C-mount
      Supported OS Microsoft windows XP/ Vista 7/ 8
      Dimension 190 × 150 × 90 mm
      Gross weight 450 g
      • 5.0 MP with USB 3.0 specification
        2/3” SONY ICX285 sensor type
        400 to 1000 nm spectral response range
        Progressive scanning mode
        Automatic regional white balance
        Suitable frames per second for smooth live images
      • Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries.
