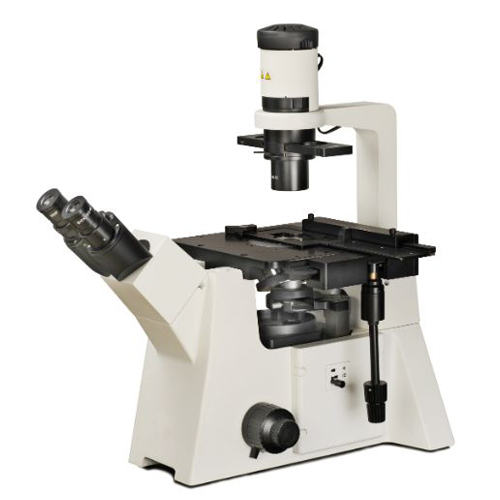

      Inverted Biological Microscope 43-IBM200

      Inverted Biological Microscope 43-IBM200

      Inverted biological microscope is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

      • ★ ★ ★ ★ ★
      Get Quote
      Viewing head Siedentopf type trinouclar head , inclined at 45°, interpupillary distance 52 to 75 mm, diopter adjustment
      Eyepiece WF10X/20, high eye-point up to 21 mm
      Reticule eyepiece: CROSSWF10X/20, high eye-point up to 21 mm
      Objectives Plan Achromatic 10X/0.25 WD=9.67 mm
      Plan Achromatic 20X/0.40 WD=7.97 mm
      Plan Achromatic 40X/0.60 WD=3.76 mm
      Plan achromatic positive phase contrast 20X/0.40 WD=7.97 mm
      Nosepiece Quintuple, inward facing
      Optical system Infinite plan optical system, F=200 mm
      Condenser 72 mm extreme long working distance condenser (ELWD), N.A. 0.3 with iris diaphragm
      Centering telescope eyepiece 30 mm
      Stage dimensions Fixed stage: 240×260 mm, low-position co-axial flexible adjusting handle , Moving range: 135×85 mm
      Slide plate 118 mm, replaceable
      Slide plate 76×26 mm, 60 mm replaceable
      Illumination 6 V/30W Osram halogen lamp
      External power, wide voltage (100V to 240 V)
      Fuse tube 250 V/3.15 A
      Filter Blue, green, yellow with 34 mm diameter
      C-mount 0.5X
      Allen screw driver 2.5 mm diameter
      Dimension 650 × 430 × 610 mm
      Gross weight 22 kg
      • Infinite plan optical system
        Siedentopf type trinocular head
        Plan achromatic & plan achromatic positive phase contrast objectives
        72 mm Extreme long working distance condenser
        Blue, Green & ground glass filters with 45 mm diameter
      • Accessories No. Name
        1 Mechanical stage: 350×208 mm, Moving range: 50×50 mm, low-position co-axial flexible adjusting handle
        2 C-mount 1X, 0.25X (fit 1/3 CCD)
        3 Plan Achromatic 4X/0.13 WD=12.86 mm objective
        4 Plan achromatic positive phase contrast 10X/0.25 WD=9.67 mm objective
        5 Plan achromatic positive phase contrast 40X/0.60 WD=3.76 mm objective
        6 Plan achromatic negative phase contrast 10X/0.25 WD=9.67 mm objective
        7 Plan achromatic negative phase contrast 20X/0.40 WD=7.97 mm objective
        8 Plan achromatic negative phase contrast 40X/0.60 WD=3.76 mm objective
        9 WF10X/22, high eye-point up to 21 mm
        10 WF16X/14 mm
        11 WF10X/20 (pointer), high eye-point up to 21 mm
        12 WF10X/22 (pointer), high eye-point up to 21 mm
        13 Reticule eyepiece: CROSSWF10X/22, high eye-point up to 21 mm
        14 Allen screw driver 2 mm, 3 mm
      • Used for applications in animal & plant tissue culture laboratory, fish laboratory, plant laboratory, poultry laboratory.
