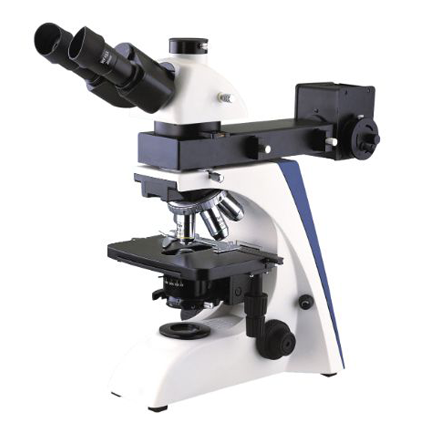

      Metallurgical Microscope 43-MMS200

      Metallurgical Microscope 43-MMS200

      Metallurgical microscopes is designed to meet performance demands of metal and alloy engineering industry. This metallurgical microscope has siedentopf type trinocular head inclined at 30º. It has superior coaxial coarse and fine focusing knobs for sample examination. Metallurgical microscope can be used as measuring instrument for measuring thin metal films, electroplating coating & other opaque films.

      • ★ ★ ★ ★ ★
      Get Quote
      Viewing head Siedentopf type trinocular head inclined at 30º, Rotable 360 º
      interpupilary distance: 48-76 mm
      Eyepiece WF10X/22 mm
      WF10X/22 mm (reticle 0.1 mm)
      Focusing Coarse and fine focusing adjustment:
      Coarse stroke: 25 mm
      Fine stroke per rotation: 0.2 mm
      Fine division 2 µm
      Tightness adjustment, upper distance limiter
      Nosepiece Quintuple nosepiece
      Objective Metallurgical LWD infinity plan Objectives:
      LPL5x/0.10 W.D=24.23 mm
      LPL10x/0.25 W.D=18.48 mm
      LPL20x/0.40 W.D=8.35 mm
      LPL50x/0.70(s) W.D=1.95 mm
      Stage Stage size: 182×140 mm
      Travel range: 77×52 mm
      Two slid holder
      Illumination 12V/50W Halogen lamp (Reflection illumination)
      6V/20W Halogen lamp (Transmission illumination)
      Condenser Abbe N.A. 1.25 (iris diaphragm)
      Filter Blue
      Dimension 770×370×460 mm
      Net weight 17.5 kg
      Gross weight 18.5 kg
      • Siedentopf type trinocular head
        Metallurgical LWD infinity plan objectives
        Quintuple nosepiece
        Eyepiece WF10X/22 mm/ WF10X/22 mm (reticle 0.1 mm)
        Blue filter
        12V/6V halogen lamp as source of illumination
      • Metallurgical LWD Infinity Plan objective: 40x, 80x, 100x
        C-mount: 1X, 0.57X (focus adjustable)
        Filter: Green, Amber, Grey
      • Metallurgical microscopes has applications the field of alloy and metal engineering industry, mineral industry. They are used for the inspection of thin metal plates, electric circuits and opaque metal, minerals.
