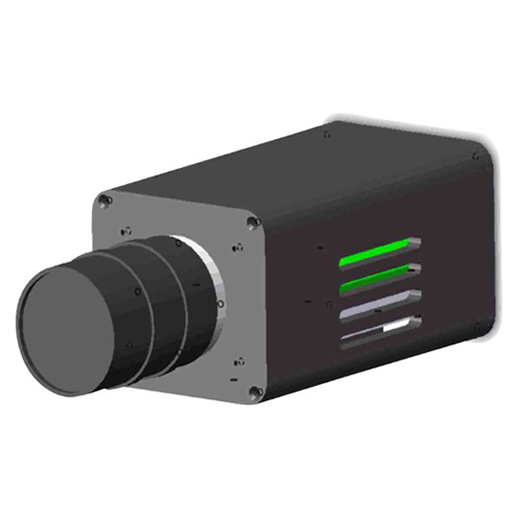

      Microscopic Camera 43-MSC200

      Microscopic Camera 43-MSC200

      Microscopic camera is adopted with digital image CMOS Sony IMX253 sensor, used to improve low light performance and obtain high resolution images. Its image analysis software includes image previewing, capturing, analyzing, processing and sharing to give user the latest image processing experience.

      • ★ ★ ★ ★ ★
      Get Quote
      Sensor type CMOS Sony IMX253 sensor
      Camera type Black & white or colored camera
      Sensor size 1”
      Resolution 12 MP
      Pixel size 3.1 × 3.1 µm
      Total active pixels 4090 × 3072
      Frame rate 40 fps at 4090×3072
      Scan method Progressive scan mode
      Exposure time 10 µs to 600 minutes
      Exposure control Manual/Auto/Area Exposure
      Shutter ESR & global reset
      Dynamic rate 66 dB
      SNR 24 dB
      Spectral response range 350 to 1100 nm
      Data interface USB 3.0, up to 56 bps, 1.8 meter cable
      Power DC 12V ± 5%
      Current Appx. 500 mA
      White balance Manual/Auto/Area white balance
      Product indicator Power LED , RS 485 communication light
      Less mount C- mount
      Working temperature 0 to 60°C
      Working Humidity 0 to 85 % RH
      Product Dimension 29 × 29 × 60 mm
      Gross weight 700 g
      • 12 MP with USB 3.0 specification
        CMOS Sony IMX253 sensor type
        C-mount fitting attachment
        Aluminum alloy shell with PCB components design
        40 frames per second for smooth live images
        Manual or automatic white area balance
        Progressive scanning mode
        Image analysis software with modular design
      • Accessories No.Name
        11.8 meters USB 3.0 cable
        2Drive & application CD
      • Accessories No.Name
        1PCI-E USB3.0 card
        2USB3.0- Optical fiber
        3USB3.0- Converter cable
      • Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries.
