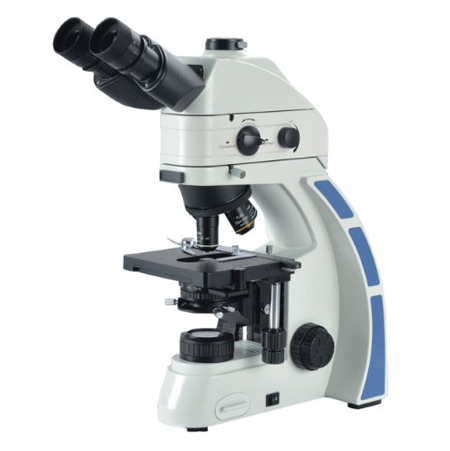

      Fluorescence Microscope 43-FMS100

      Fluorescence Microscope 43-FMS100

      Fluorescence microscope is an advanced microscopes that uses single band LED excitation. This fluorescence microscope with wide voltage range uses 3W LED as a light source for transmitted illumination. It has comfortable 30° inclined gemel trinocular head and correction free interpupillary adjustment. The microscope has integrated all metal high pressure die casting (HPDC) body with rack and pinion mechanism for coarse and fine focus adjustment.

      • ★ ★ ★ ★ ★
      Get Quote
      Optical System Infinity corrected achromatic optical system
      Viewing Head 30° gemel trinocular viewing head with 360° rotable eyepiece tube
      Interpupillary distance (IPD) 50-75 mm
      Fixed spectroscopical ratio R:T=80%:20%
      Eyepiece PL10X/22 High eye-point wild field plane eyepiece
      Field of view 20 mm
      Effective exit pupil distance: 19mm
      Diopter ± 5 adjustable
      Nosepiece Backward quadruple nosepiece
      Focusing adjustment Integrated all metal high pressure die casting (HPDC) body
      Precision transmission mechanism with rack and pinion
      Coarse focusing scope: 30mm with tightness adjustment and place limit set
      Fine adjustable precision 0.002 mm
      Objective Infinity plan achromatic objectives: 4x, 10x, 40x(s), 100x (s,oil)
      Stage Mechanical stage with underhand: 150×140 mm Moving range: 76×50 mm Precision: 0.1mm, with damping clips
      Condenser Kohler N.A. 1.25 condenser (with socket for phase contrast & dark field sliders)
      Illumination 100V-240V_AC50/60Hz wide range voltage 3W LED (predetermine filament center)
      LED fluorescent reflected illumination B1band-pass type fluorescence module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 470 nm
      Dimension 570×550×280 mm
      Net weight 11 kg
      Gross weight 13 kg
      • Infinity corrected achromatic optical system
        30º gemel trinocular viewing head with 360° rotable eyepiece tube
        High eye-point wild field plane eyepiece PL10X
        HPDC body with rack and pinion mechanism
        B1band-pass type fluorescence module
        Intensity adjusting knob & switch knob for bright field & fluorescence
      • LED fluorescent reflected illumination Optional Outfit:
        G1 band-pass type LED fluorescence module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 560 nm
        B4 LED fluorescence module dedicated for TB with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 455 nm
        UV2 long pass type LED module with intensity adjusting knob & switch knob for bright field and fluorescence module, central wavelength 365 nm
      • Fluorescence microscope has applications in pathology, medical research & biology and in cytology to study the cells structure.
