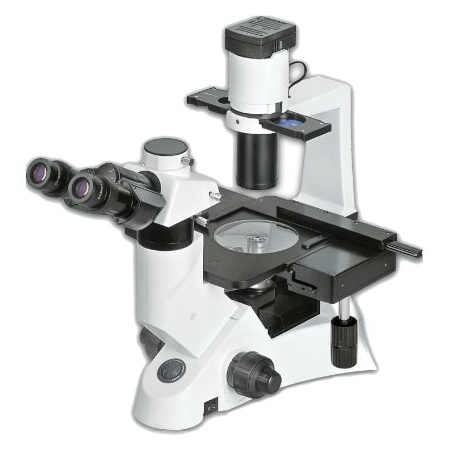

      Inverted Biological Microscope 43-IBM101

      Inverted Biological Microscope 43-IBM101

      Inverted biological microscope is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

      • ★ ★ ★ ★ ★
      Get Quote
      Viewing head Trinocular head inclined at 30°C, interpupillary distance 48 to 75 mm
      Eyepiece High-point, Extra wide field eyepiece EW10X/ 22 mm
      Objectives Long working distance (LWD) infinite plan objective: 4X/ 0.1, WD 18 mm
      Long working distance (LWD) infinite plan objective: 40X/ 0.6, WD 2.6 mm
      Infinite plan phase objective: PH10X/ 0.25, WD 10 mm
      Infinite plan phase objective: PH20X/ 0.4, WD 5.1 mm
      Nosepiece Backward Quintuple nosepiece
      Optical system Infinite optical system
      Condenser Extreme long work distance condenser (ELWD) N.A. 0.3, LWD 72 mm (without condenser 150 mm)
      Centering telescope eyepiece 30 mm
      Phase contrast kit 10X, 20X, 40X phase annulus plate
      Stage dimensions Plain stage: 160×250 mm, Glass insert, Auxiliary Stage: 70×180 mm
      Focusing system Coaxial Coarse & fine adjustment, vertical objective movement, coarse stroke 37.7 mm per rotation, fine stroke 0.2 mm per rotation
      Illumination 6 V/30 W, halogen lamp, brightness adjustable
      Filter Blue, green, ground glass with diameter 45 mm
      Dimension 650 × 430 × 610 mm
      Gross weight 14 kg
      • Trinocular head design
        Infinite optical system
        10X to 20X, 40X phase annulus plate
        Innovative stand structure
        72 mm Extreme long working distance condenser
        Blue, Green & ground glass filters with 45 mm diameter
      • Accessories No. Name
        1 Attachable mechanical stage, X-Y Coaxial control, Moving range 120×78 mm
        2 LWD infinite plan objective: 10X/ 0.25, WD 10 mm
        3 LWD infinite plan objective: 20X/ 0.4, WD 5.1 mm
        4 Infinite plan phase objective: 40X/ 0.65, WD 0.35 mm
        5 Centering Telescope 30 mm
        6 Terasaki holder, 38 mm petri dish holder & 54 mm slide glass holder
        7 10X to 20X, 40X phase annulus plate
        8 Photo attachment
        9 Video Adapter with C Mount
      • Used for applications in animal & plant tissue culture laboratory, fish laboratory, plant laboratory, poultry laboratory.
