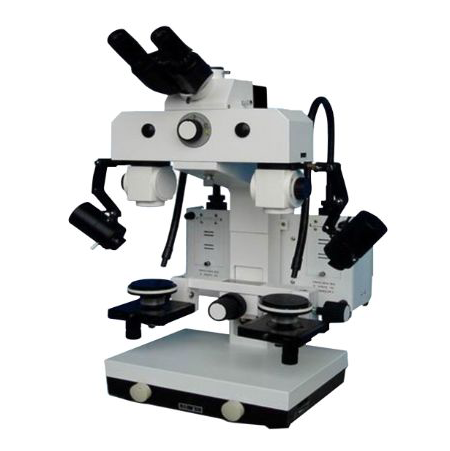

      Comparison Microscope 43-CMS100

      Comparison Microscope 43-CMS100

      Comparison microscope 43-CMS100, the side-by-side analysis of two specimens by same person is possible. It comes with built in digital colour video recording system to observe a live image of the split image on to the computer. It has large working distance of 100 mm for easy specimen mounting and observing. This microscope is mainstay of forensic science & criminology investigations.

      • ★ ★ ★ ★ ★
      Get Quote
      Optical magnification range 2.5X ~ 120X
      Eyepiece WF 10X / Ø 22 mm, WF 10X / Ø 14 mm
      video recording system 3 mega pixels, 1024 × 768 resolution
      Support USB numerical VGA/AV/DAI output
      Match with digital camera port
      Working distance 100 mm
      Objective stage dimension 100 mm
      Moving range: X/50 mm, Y/50 mm, Z/50 mm
      Objective 0.6x, 1.2x, 2.0x, 3.5x, 5.0x, (0.3x, 2.0x optical)
      Objective view field diameter 2.5 Ø mm-90 Ø mm
      Objective stage horizontal linkage range 50 mm
      Coarse moving range 50 mm
      Illumination Semiconductor light source (brightness adjustable)
      300W independent exteriorized cold light source
      Photoconductive fiber with adjustable condenser
      Power supply 24 V AV input, 24 V DV stable voltage output
      In accordance with international safe standards
      Dimension 410 × 210 × 450 mm
      Net weight 7 kg
      Gross weight 8 kg
      • Build in digital colour video recording system
        Working distance of 100 mm for easy specimen mounting
        Good range of optical magnification
        Power supply according to international safe standards
        Objectives: 0.6x, 1.2x, 2.0x, 3.5x, 5.0x, (0.3x, 2.0x optical)
      • It has applications in forensic science laboratories & institutes, police department investigations, archaeology for comparative study of objects.
