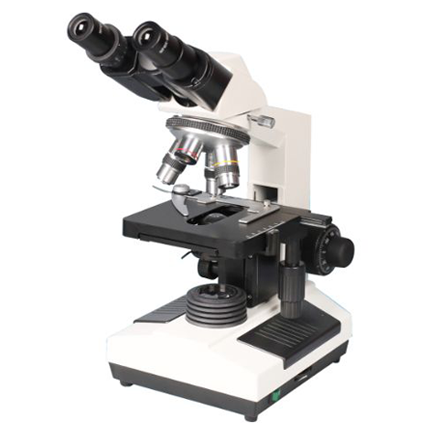

      Biological Microscope 43-BMS102

      Biological Microscope 43-BMS102

      Biological microscope is easy to operate. It comes with siedentopf type binocular head with interpupillary distance of 48-75mm range. It is useful for fine & coarse focusing of specimen. It’s an essential tool for scientist in the research. It uses halogen lamp as source of illumination. It is used for biological research studies.

      • ★ ★ ★ ★ ★
      Get Quote
      Optical system Finite Optical System
      Viewing Head Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      Eyepiece WF 10 X
      Nosepiece Quadruple, click-stop
      Objective Achromatic objective 4 x, 10 x, 40 x(s), 100 x(s,oil)
      Stage Double layer mechanical stage: 140 × 132 × 75 × 45 mm
      Focusing Coaxial coarse & fine adjustment, focusing range 30 mm, Focusing interval 0.002 mm
      Condenser Abbe N.A. 1.25 condenser with iris diaphragm & filter
      Illumination 6 V / 20 W Halogen lamp or 3 W LED, adjustable brightness
      Dimension 320 × 270 × 430 mm
      Net weight 5.5 kg
      Gross weight 6 kg
      • Siedentopf type binocular head with interpupillary distance range 48-75mm
        Achromatic objective 4x, 10x, 40x(s), 100x(s, oil)
        Quadruple, Click-stop nosepiece
        6V/20W Halogen lamp/ 3W LED as a source of illumination
      • Trinocular head
        Phase contrast kit (10 x, 20 x, 40 x, 100 x)
        Dark field condenser (dry or oil)
      • Biological microscope can be used for routine microscopic analysis of samples in research laboratories, schools, institutes and colleges.

      Atomic force microscope

      Atomic force microscope 43-ATM100

      Atomic force microscope 43-ATM100

      • Operation modes : Contact mode, friction mode, extended modes of tapping phase, MFM, EFM, scans at random angle
      • Scan angle : Random angle
      ★ ★ ★ ★ ★
      Atomic force microscope 43-ATM101

      Atomic force microscope 43-ATM101

      • Operation modes : Contact mode, friction mode, extended modes of tapping phase, MFM, EFM, scan angle 0 to 360°
      • Scan angle : 0 to 360°
      ★ ★ ★ ★ ★

      Comparison microscope

      Comparison Microscope 43-CMS100

      Comparison Microscope 43-CMS100

      • Optical magnification range : 2.5X ~ 120X
      • Eyepiece : WF 10X / Ø 22 mm, WF 10X / Ø 14 mm
      ★ ★ ★ ★ ★

      Digital Microscope

      Digital Microscope 43-DMS100

      Digital Microscope 43-DMS100

      • Optical system : Infinite optical system
      • Viewing head : Trinocular head, inclined at 30º, interpupillary distance 54 mm-75 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS101

      Digital Microscope 43-DMS101

      • Optical system : Infinite optical system
      • Viewing head : Siedentopf type binocular head , inclined at 30º, 360ºeyepiece tube rotation, interpupillary distance 50 mm-75 mm, anti-fungal system
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS200

      Digital Microscope 43-DMS200

      • Viewing head : Binocular head, inclined at 20° , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS201

      Digital Microscope 43-DMS201

      • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS202

      Digital Microscope 43-DMS202

      • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS203

      Digital Microscope 43-DMS203

      • Viewing head : 45° inclined and 360° rotable trinocular head, interpupillary distance 55-75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS300

      Digital Microscope 43-DMS300

      • Viewing head : Compensation free binocular head inclined at 30° , interpupillary distance 48 -75 mm
        Range of viewing field: 90%
      • Eyepiece : WF10X/18 mm
      ★ ★ ★ ★ ★

      Educational microscope

      Educational microscope 43-EMS100

      Educational microscope 43-EMS100

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, inclined at 30°
        eyepiece tube rotation 360°
      ★ ★ ★ ★ ★
      Educational microscope 43-EMS101

      Educational microscope 43-EMS101

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, inclined at 30°
        eyepiece tube rotation 360°
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS200

      Educational microscopes 43-EMS200

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS201

      Educational microscopes 43-EMS201

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS202

      Educational microscopes 43-EMS202

      • Optical System : Infintie Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★

      Fluorescence Microscope

      Fluorescence Microscope 43-FMS100

      Fluorescence Microscope 43-FMS100

      • Optical System : Infinity corrected achromatic optical system
      • Viewing Head : 30° gemel trinocular viewing head with 360° rotable eyepiece tube
        Interpupillary distance (IPD) 50-75 mm
        Fixed spectroscopical ratio R:T=80%:20%
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS200

      Fluorescence Microscope 43-FMS200

      • Viewing head : Siedentopf type trinocular head inclined at 30°, 360° rotation
        Interpupillary adjustable distance 50-75 mm
        Antifungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS300

      Fluorescence Microscope 43-FMS300

      • Viewing head : Siedentopf type binocular head inclined at 30º, 360º rotation
        Interpupillary adjustable distance 50mm-75mm
        Anti-fungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS301

      Fluorescence Microscope 43-FMS301

      • Viewing head : Siedentopf type binocular head, inclined at 30º, 360ºrotation
        Interpupillary adjustable distance 50mm-75mm, Anti-fungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★

      Inverted Biological Microscope

      Inverted Biological Microscope 43-IBM101

      Inverted Biological Microscope 43-IBM101

      • Viewing head : Trinocular head inclined at 30°C, interpupillary distance 48 to 75 mm
      • Eyepiece : High-point, Extra wide field eyepiece EW10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM200

      Inverted Biological Microscope 43-IBM200

      • Viewing head : Siedentopf type trinouclar head , inclined at 45°, interpupillary distance 52 to 75 mm, diopter adjustment
      • Eyepiece : WF10X/20, high eye-point up to 21 mm
        Reticule eyepiece: CROSSWF10X/20, high eye-point up to 21 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM300

      Inverted Biological Microscope 43-IBM300

      • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 20 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM301

      Inverted Biological Microscope 43-IBM301

      • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM302

      Inverted Biological Microscope 43-IBM302

      • Viewing head : Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 20 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM303

      Inverted Biological Microscope 43-IBM303

      • Viewing head : Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM400

      Inverted Biological Microscope 43-IBM400

      • Viewing head : Monocular viewing head
      • Eyepiece : 10X/ 18 mm
      ★ ★ ★ ★ ★

      Metallurgical Microscope

      Metallurgical Microscope 43-MMS100

      Metallurgical Microscope 43-MMS100

      • Viewing head : Trinocular head, inclined at 30º
        Interpupillary distance 48-75 mm
      • Eyepiece : High point, extra wide field eyepiece EW10X/20 mm
      ★ ★ ★ ★ ★
      Metallurgical Microscope 43-MMS200

      Metallurgical Microscope 43-MMS200

      • Viewing head : Siedentopf type trinocular head inclined at 30º, Rotable 360 º
        interpupilary distance: 48-76 mm
      • Eyepiece : WF10X/22 mm
        WF10X/22 mm (reticle 0.1 mm)
      ★ ★ ★ ★ ★
      Video Metallurgical Microscope 43-MMS300

      Video Metallurgical Microscope 43-MMS300

      • Eyepiece : Wide field WF10X(FNΦ18mm), Micrometre available
        Wide field WF15X(FNΦ13mm), Micrometre available
        Wide field WF20X(FNΦ10mm), Micrometre available
      • Infinite flat field achromatic objective : PL L5X/0.12 Working distance:15.5 mm
        PL L10X/0.25 Working distance:8.7mm
        PL L20X/0.40 Working distance:8.8mm
        PL L50X/0.70 Working distance:5.1 mm
      ★ ★ ★ ★ ★

      Microscopic Camera

      Microscopic Camera 43-MSC100

      Microscopic Camera 43-MSC100

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color, Cool (to be fit for low temperature) camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC101

      Microscopic Camera 43-MSC101

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC102

      Microscopic Camera 43-MSC102

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC200

      Microscopic Camera 43-MSC200

      • Sensor type : CMOS Sony IMX253 sensor
      • Camera type : Black & white or colored camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC201

      Microscopic Camera 43-MSC201

      • Sensor type : CMOS Sony IMX185 sensor
      • Camera type : Colored
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC202

      Microscopic Camera 43-MSC202

      • Sensor type : CMOS Sony IMX123 sensor
      • Camera type : Colored
      ★ ★ ★ ★ ★

      Multi viewing Microscope

      Multi-Viewing Biological Microscope 43-MBM100

      Multi-Viewing Biological Microscope 43-MBM100

      • Viewing Head : Sliding type binocular head, inclined at 45° (5 pcs)
      • Eyepiece : Wide field eyepiece WF10X (10 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM101

      Multi-Viewing Biological Microscope 43-MBM101

      • Viewing Head : Sliding type binocular head, inclined at 45° (1 pcs)
        Monocular head, inclined at 45º (2 pcs)
      • Eyepiece : Wide field eyepiece WF10X (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM102

      Multi-Viewing Biological Microscope 43-MBM102

      • Viewing Head : Sliding type binocular head, inclined at 45° (2 pcs)
      • Eyepiece : Wide field eyepiece WF10X (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM200

      Multi-Viewing Biological Microscope 43-MBM200

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM201

      Multi-Viewing Biological Microscope 43-MBM201

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30°, 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-7 5 mm (2 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM202

      Multi-Viewing Biological Microscope 43-MBM202

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
      ★ ★ ★ ★ ★
