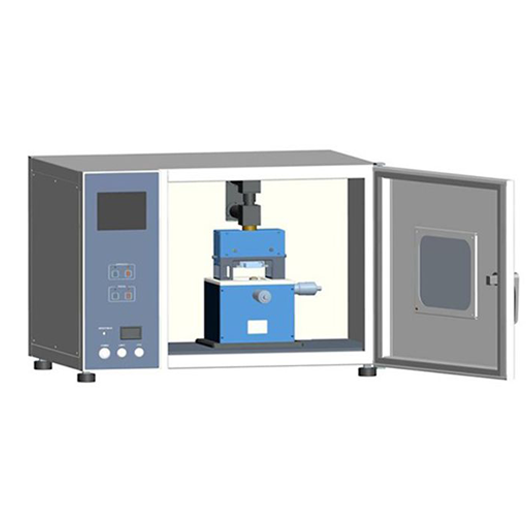

      Atomic force microscope 43-ATM101

      Atomic force microscope 43-ATM101

      Atomic force microscope comes with combined design of scan head and sample stage, to give strong anti-vibration performance. Adopted with servomotor, drives the sample approaching tip manually or automatically, to evaluate precise scanning area position. Equipped with precision laser detection and probe alignment device, make easy adjustment of laser beam.

      • ★ ★ ★ ★ ★
      Get Quote
      Operation modes Contact mode, friction mode, extended modes of tapping phase, MFM, EFM, scan angle 0 to 360°
      Scan angle 0 to 360°
      Maximum scan range X/Y axis: 50 µm, Z axis: 5 µm
      Optical system/ Magnification of CCD Magnification: 10x, Resolution: 1 µm
      Resolution X/Y axis: 0.2 nm, Z axis: 0.05 nm
      Sample size Ø≤ 90 mm, H≤ 20 mm
      Sample movement 0 to 20 mm
      Pulse width of approaching motor 10 ± 2 ms
      Scan rate 0.6 Hz to 4.34 Hz
      Scanning control XY: 18 bit D/A & double 16 bit A/D multiple channel simultaneously
      Types of sampling pixel 256×256, 512×512
      Feedback type DSP digital feedback
      Feedback sampling rate 64 KHz
      PC connections: USB 2.0
      Windows software Compatible with windows 98/2000/XP/7/8
      Instrument Diemnsion 700 × 500 × 460 mm
      Net weight 50 kg
      Gross Weight 87.4 kg
      • Large sample transfer range
        Optical observation system for checking tip & sample’s position
        Modular electronic system for easy maintenance
        CCD observing system
        Equipped with servomotor to achieve CCD auto focusing
        Provides highly accurate results
      • It finds best solution for applications in biochemistry for tissues, cells, cellular components imaging, nanotechnology for imaging of polymers, nanomaterials, and in chemistry physics for imaging of surface metals elements.
