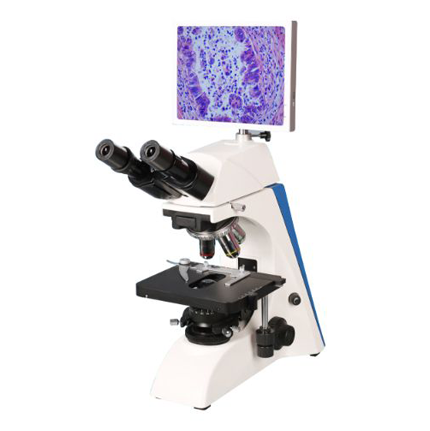

      Digital Microscope 43-DMS101

      Digital Microscope 43-DMS101

      Digital microscope allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.

      • ★ ★ ★ ★ ★
      Get Quote
      Optical system Infinite optical system
      Viewing head Siedentopf type binocular head , inclined at 30º, 360ºeyepiece tube rotation, interpupillary distance 50 mm-75 mm, anti-fungal system
      Eyepiece WF10X
      Objectives Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil)
      Stage Double layer mechanical stage: 180x145 mm
      Travel stage: 56 x75 mm with right hand stage handle
      Condenser Abbe type N.A. 1..25 condenser with iris diaphragm
      Focusing Coarse and fine focusing adjustment with rack and pinion mechanism
      fine focusing interval 0.002mm
      Nosepiece Quintuple quick-stop revolving mechanism with multiple ball bearing
      Illumination Built-in kohler illumination system 3W LED, adjustable brightness, field diaphragm
      LCD Screen 8.0 inch TFT touch screen
      Output USB 2.0, HDMI
      Operating system Android 4.2.2
      Software Touch scope
      Valid Pixel 5.0 Mega pixel
      Dimension 380×380×750 mm
      Net weight 13 kg
      Gross weight 14 kg
      Power supply 85 V ~ 265 V universal power supply
      • Infinite optical system
        Android 4.2.2 O.S. with 5.0 mega pixel LCD TFT screen resolution
        Infinity plan achromatic objective
        3W LED lamp with intensity control for illumination
        Advanced technology software IMS camera, Touch scope
      • Digital microscope has wide and promising applications in the fields of bacteriology, cytology, botany, medical research field to study the details of the specimen on LCD screen.
