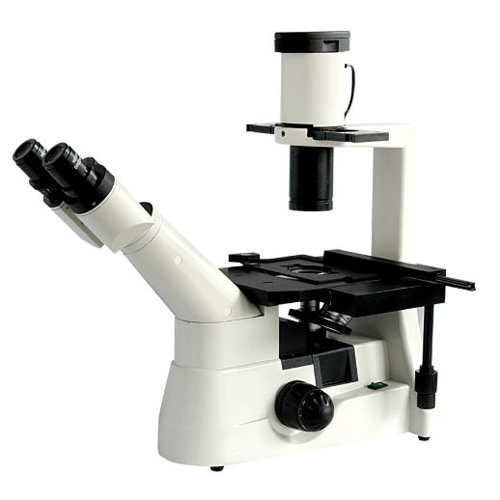

      Inverted Biological Microscope 43-IBM300

      Inverted Biological Microscope 43-IBM300

      Inverted biological microscope is with compact & sleek design is equipped with stable & reliable ‘T’ type base, phase contrast long working distance objectives. It helps user to configure the cell more clearly thereby provides high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

      • ★ ★ ★ ★ ★
      Get Quote
      Viewing head Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      Eyepiece WF10X/ 20 mm
      Objectives Long working distance plan objective:
      LWDPL 4X/ 0.1 W.D. 25 mm
      LWDPL 10X/0.25 phase contrast W.D. 11 mm
      LWDPL 20X/ 0.4 phase contrast W.D. 6 mm
      LWDPL 40X/ 0.6 W.D. 3.8 mm
      Nosepiece Quintuple Nosepiece
      Optical system Finite optical system
      Condenser N.A. 0.3 Abbe condenser W.D. 75 mm
      Centering telescope eyepiece 30 mm
      Stage dimensions Double layer mechanical stage, stage size: 242×172 mm, central stage : 110 mm, Moving stage: 115×75 mm
      Focusing system Coaxial coarse & fine focusing adjustment with rack & pinion mechanism, fine focusing scale value 0.001 mm
      Phase contrast sliding plate Adjustable center for phase contrast ring plate
      Illumination Halogen bulb 12 V/ 30 W, brightness adjustable
      Filter Blue, green, yellow froster glass plate
      Dimension 750 × 320 × 475 mm
      Gross weight 13 kg
      • Long working distance plain objective
        Compensation free binocular viewing head
        Inverted working stage
        Backward quintuple nosepiece
        Adjustable center phase contrast ring plate
      • Accessories No. Name
        1 WF10X/ 18 mm with cross graduation of 0.1 mm scale
        2 Long working distance objective LWDPL 10X
        3 Long working distance objective LWDPL 20X
        4 Long working distance phase contrast objective LWDPL 40X
        5 Fluorescence attachment: B, G wave band, 220 V/ 100 W mercury lamp
        6 Photograph attachment: Photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece
        7 Electron eyepiece: 1.3 or 3.0 MP, CMOS electronic eyepiece
      • Used for wide range of applications in biotechnology, tissue culture, microbiology, medicine and other industry
