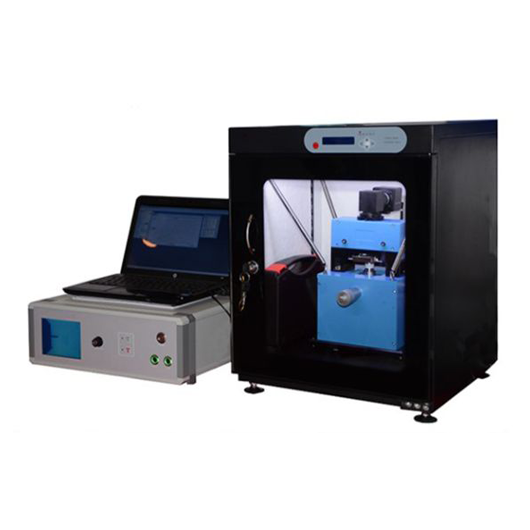

      Atomic force microscope 43-ATM100

      Atomic force microscope 43-ATM100

      Atomic force microscope comes with combined design of scan head and sample stage so as to give strong anti-vibration performance. It’s equipped with precision laser detection and probe alignment device for simple & easy adjustment of laser beam.

      • ★ ★ ★ ★ ★
      Get Quote
      Operation modes Contact mode, friction mode, extended modes of tapping phase, MFM, EFM, scans at random angle
      Scan angle Random angle
      Maximum scan range X/Y axis: 20 µm, Z axis: 2 µm
      Optical system/ Magnification of CCD Magnification: 4x, Resolution: 2.5 µm
      Resolution X/Y axis: 0.2 nm, Z axis: 0.05 nm
      Sample size Ø≤ 90 mm, H≤ 20 mm
      Sample movement 0 to 20 mm
      Pulse width of approaching motor 10 ± 2 ms
      Scan rate 0.6 Hz to 4.34 Hz
      Scanning control XY: 18 bit D/A & double 16 bit A/D multiple channel simultaneously
      Types of sampling pixel 256×256, 512×512
      Feedback type DSP digital feedback
      Feedback sampling rate 64 KHz
      PC connections: USB 2.0
      Windows software Compatible with windows 98/2000/XP/7/8
      Instrument Diemnsion 415 × 410 × 545 mm
      Net weight 40 kg
      Gross Weight 50 kg

      • Large range of sample transfer
        Modular electronic system for easy maintenance
        Adopted with spring for vibration isolation
        Provides highly accurate results
        Optical observation system for checking tip & sample’s position

      • It finds best solution for applications in biochemistry for tissues, cells, cellular components imaging, nanotechnology for imaging of polymers, nanomaterials, and in chemistry physics for imaging of surface metals elements.

      Biological Microscope

      Binocular Head Biological Microscope 03B-BMB100

      Binocular Head Biological Microscope 03B-BMB100

      • Nosepiece : 4-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TMB200

      Trinocular Head Biological Microscope 03B-TMB200

      • Nosepiece : 4-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Monocular Head Biological Microscope 03B-MMB100

      Monocular Head Biological Microscope 03B-MMB100

      • Nosepiece : 4-places revolver nosepiece
      • Head : Monocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BMB101

      Binocular Head Biological Microscope 03B-BMB101

      • Nosepiece : 4-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TMB201

      Trinocular Head Biological Microscope 03B-TMB201

      • Nosepiece : 4-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BHM100

      Binocular Head Biological Microscope 03B-BHM100

      • Nosepiece : 4-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-THM200

      Trinocular Head Biological Microscope 03B-THM200

      • Nosepiece : 4-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BMPH100

      Binocular Head Biological Microscope 03B-BMPH100

      • Nosepiece : 4-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BMPH101

      Binocular Head Biological Microscope 03B-BMPH101

      • Nosepiece : 4-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-BMPH200

      Trinocular Head Biological Microscope 03B-BMPH200

      • Nosepiece : 4-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TMPH201

      Trinocular Head Biological Microscope 03B-TMPH201

      • Nosepiece : 4-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BMM100

      Binocular Head Biological Microscope 03B-BMM100

      • Nosepiece : 5-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TMM200

      Trinocular Head Biological Microscope 03B-TMM200

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-BMM101

      Binocular Head Biological Microscope 03B-BMM101

      • Nosepiece : 5-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TMM201

      Trinocular Head Biological Microscope 03B-TMM201

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-B6BM100

      Binocular Head Biological Microscope 03B-B6BM100

      • Nosepiece : 5-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-T6TM200

      Trinocular Head Biological Microscope 03B-T6TM200

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Binocular Head Biological Microscope 03B-B6IBM100

      Binocular Head Biological Microscope 03B-B6IBM100

      • Nosepiece : 5-places revolver nosepiece
      • Head : Binocular head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-T6ITM200

      Trinocular Head Biological Microscope 03B-T6ITM200

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-THBM200

      Trinocular Head Biological Microscope 03B-THBM200

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-THBM201

      Trinocular Head Biological Microscope 03B-THBM201

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-THBM202

      Trinocular Head Biological Microscope 03B-THBM202

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-THBM203

      Trinocular Head Biological Microscope 03B-THBM203

      • Nosepiece : 5-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Trinocular Head Biological Microscope 03B-TM200

      Trinocular Head Biological Microscope 03B-TM200

      • Nosepiece : 6-places revolver nosepiece
      • Head : Trinocular Head
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS100

      Biological Microscope 43-BMS100

      • Optical system : Finite Optical System
      • Viewing Head : Sliding type binocular head, inclined at 45°
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS101

      Biological Microscope 43-BMS101

      • Optical system : Finite Optical System
      • Viewing Head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360°
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS102

      Biological Microscope 43-BMS102

      • Optical system : Finite Optical System
      • Viewing Head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS200

      Biological Microscope 43-BMS200

      • Optical system : Finite optical system
      • Viewing Head : Siedentopf Binocular viewing head, Interpupillary distance range 48 - 75 mm, Inclined at 30º
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS201

      Biological Microscope 43-BMS201

      • Optical system : Infinite optical system
      • Viewing Head : Siedentopf Binocular viewing head, Interpupillary distance range 48 - 75 mm, Inclined at 30°
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS202

      Biological Microscope 43-BMS202

      • Optical system : Infinite optical system
      • Viewing Head : Binocular viewing head Inclined at 30° Interpupillary distance range 54 - 75 mm
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS300

      Biological Microscope 43-BMS300

      • Optical system : Infinite optical system
      • Viewing Head : Siedentopf binocular head, inclined at 30º, interpupillary distance range 50 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Biological Microscope 43-BMS301

      Biological Microscope 43-BMS301

      • Optical system : Infinite optical system
      • Viewing Head : Siedentopf binocular head, inclined at 30º, interpupillary distance range 50 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★

      Comparison microscope

      Comparison Microscope 43-CMS100

      Comparison Microscope 43-CMS100

      • Optical magnification range : 2.5X ~ 120X
      • Eyepiece : WF 10X / Ø 22 mm, WF 10X / Ø 14 mm
      ★ ★ ★ ★ ★

      Digital Microscope

      Digital Microscope 43-DMS100

      Digital Microscope 43-DMS100

      • Optical system : Infinite optical system
      • Viewing head : Trinocular head, inclined at 30º, interpupillary distance 54 mm-75 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS101

      Digital Microscope 43-DMS101

      • Optical system : Infinite optical system
      • Viewing head : Siedentopf type binocular head , inclined at 30º, 360ºeyepiece tube rotation, interpupillary distance 50 mm-75 mm, anti-fungal system
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS200

      Digital Microscope 43-DMS200

      • Viewing head : Binocular head, inclined at 20° , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS201

      Digital Microscope 43-DMS201

      • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS202

      Digital Microscope 43-DMS202

      • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
      • Eyepiece : EW10X/ Ø22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS203

      Digital Microscope 43-DMS203

      • Viewing head : 45° inclined and 360° rotable trinocular head, interpupillary distance 55-75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Digital Microscope 43-DMS300

      Digital Microscope 43-DMS300

      • Viewing head : Compensation free binocular head inclined at 30° , interpupillary distance 48 -75 mm
        Range of viewing field: 90%
      • Eyepiece : WF10X/18 mm
      ★ ★ ★ ★ ★

      Educational microscope

      Educational microscope 43-EMS100

      Educational microscope 43-EMS100

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, inclined at 30°
        eyepiece tube rotation 360°
      ★ ★ ★ ★ ★
      Educational microscope 43-EMS101

      Educational microscope 43-EMS101

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, inclined at 30°
        eyepiece tube rotation 360°
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS200

      Educational microscopes 43-EMS200

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS201

      Educational microscopes 43-EMS201

      • Optical System : Finite Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★
      Educational microscopes 43-EMS202

      Educational microscopes 43-EMS202

      • Optical System : Infintie Optical System
      • Viweing head : Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360º
      ★ ★ ★ ★ ★

      Fluorescence Microscope

      Fluorescence Microscope 43-FMS100

      Fluorescence Microscope 43-FMS100

      • Optical System : Infinity corrected achromatic optical system
      • Viewing Head : 30° gemel trinocular viewing head with 360° rotable eyepiece tube
        Interpupillary distance (IPD) 50-75 mm
        Fixed spectroscopical ratio R:T=80%:20%
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS200

      Fluorescence Microscope 43-FMS200

      • Viewing head : Siedentopf type trinocular head inclined at 30°, 360° rotation
        Interpupillary adjustable distance 50-75 mm
        Antifungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS300

      Fluorescence Microscope 43-FMS300

      • Viewing head : Siedentopf type binocular head inclined at 30º, 360º rotation
        Interpupillary adjustable distance 50mm-75mm
        Anti-fungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★
      Fluorescence Microscope 43-FMS301

      Fluorescence Microscope 43-FMS301

      • Viewing head : Siedentopf type binocular head, inclined at 30º, 360ºrotation
        Interpupillary adjustable distance 50mm-75mm, Anti-fungal system
      • Eyepiece : WF10X/20 mm
      ★ ★ ★ ★ ★

      Inverted Biological Microscope

      Inverted Biological Microscope 43-IBM101

      Inverted Biological Microscope 43-IBM101

      • Viewing head : Trinocular head inclined at 30°C, interpupillary distance 48 to 75 mm
      • Eyepiece : High-point, Extra wide field eyepiece EW10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM200

      Inverted Biological Microscope 43-IBM200

      • Viewing head : Siedentopf type trinouclar head , inclined at 45°, interpupillary distance 52 to 75 mm, diopter adjustment
      • Eyepiece : WF10X/20, high eye-point up to 21 mm
        Reticule eyepiece: CROSSWF10X/20, high eye-point up to 21 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM300

      Inverted Biological Microscope 43-IBM300

      • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 20 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM301

      Inverted Biological Microscope 43-IBM301

      • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM302

      Inverted Biological Microscope 43-IBM302

      • Viewing head : Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 20 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM303

      Inverted Biological Microscope 43-IBM303

      • Viewing head : Compensation free trinocular head inclined at 45°C, interpupillary distance 50 to 75 mm
      • Eyepiece : WF10X/ 22 mm
      ★ ★ ★ ★ ★
      Inverted Biological Microscope 43-IBM400

      Inverted Biological Microscope 43-IBM400

      • Viewing head : Monocular viewing head
      • Eyepiece : 10X/ 18 mm
      ★ ★ ★ ★ ★

      Metallurgical Microscope

      Metallurgical Microscope 43-MMS100

      Metallurgical Microscope 43-MMS100

      • Viewing head : Trinocular head, inclined at 30º
        Interpupillary distance 48-75 mm
      • Eyepiece : High point, extra wide field eyepiece EW10X/20 mm
      ★ ★ ★ ★ ★
      Metallurgical Microscope 43-MMS200

      Metallurgical Microscope 43-MMS200

      • Viewing head : Siedentopf type trinocular head inclined at 30º, Rotable 360 º
        interpupilary distance: 48-76 mm
      • Eyepiece : WF10X/22 mm
        WF10X/22 mm (reticle 0.1 mm)
      ★ ★ ★ ★ ★
      Video Metallurgical Microscope 43-MMS300

      Video Metallurgical Microscope 43-MMS300

      • Eyepiece : Wide field WF10X(FNΦ18mm), Micrometre available
        Wide field WF15X(FNΦ13mm), Micrometre available
        Wide field WF20X(FNΦ10mm), Micrometre available
      • Infinite flat field achromatic objective : PL L5X/0.12 Working distance:15.5 mm
        PL L10X/0.25 Working distance:8.7mm
        PL L20X/0.40 Working distance:8.8mm
        PL L50X/0.70 Working distance:5.1 mm
      ★ ★ ★ ★ ★

      Microscopic Camera

      Microscopic Camera 43-MSC100

      Microscopic Camera 43-MSC100

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color, Cool (to be fit for low temperature) camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC101

      Microscopic Camera 43-MSC101

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC102

      Microscopic Camera 43-MSC102

      • Sensor type : CCD Sony ICX285 sensor
      • Camera type : Black and white or color camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC200

      Microscopic Camera 43-MSC200

      • Sensor type : CMOS Sony IMX253 sensor
      • Camera type : Black & white or colored camera
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC201

      Microscopic Camera 43-MSC201

      • Sensor type : CMOS Sony IMX185 sensor
      • Camera type : Colored
      ★ ★ ★ ★ ★
      Microscopic Camera 43-MSC202

      Microscopic Camera 43-MSC202

      • Sensor type : CMOS Sony IMX123 sensor
      • Camera type : Colored
      ★ ★ ★ ★ ★

      Multi viewing Microscope

      Multi-Viewing Biological Microscope 43-MBM100

      Multi-Viewing Biological Microscope 43-MBM100

      • Viewing Head : Sliding type binocular head, inclined at 45° (5 pcs)
      • Eyepiece : Wide field eyepiece WF10X (10 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM101

      Multi-Viewing Biological Microscope 43-MBM101

      • Viewing Head : Sliding type binocular head, inclined at 45° (1 pcs)
        Monocular head, inclined at 45º (2 pcs)
      • Eyepiece : Wide field eyepiece WF10X (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM102

      Multi-Viewing Biological Microscope 43-MBM102

      • Viewing Head : Sliding type binocular head, inclined at 45° (2 pcs)
      • Eyepiece : Wide field eyepiece WF10X (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM200

      Multi-Viewing Biological Microscope 43-MBM200

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (4 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM201

      Multi-Viewing Biological Microscope 43-MBM201

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30°, 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-7 5 mm (2 pcs)
      ★ ★ ★ ★ ★
      Multi-Viewing Biological Microscope 43-MBM202

      Multi-Viewing Biological Microscope 43-MBM202

      • Optical system : Infinite optical system
      • Viewing Head : Compensation free trinocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
        Compensation free binocular head, inclined at 30° , 360° rotable, interpupillary distance 48-75 mm (1 pcs)
      ★ ★ ★ ★ ★

      Copyright © 2024 Labsearch.com | All Right Reserved

      Enquiry Form
      Captcha Image
